GW39-16x33 by Couplamatic | GW Series Coupling | 1" Hose ID x M33x1.5 Thread Komatsu 30° Flare Female Swivel | Straight | Trivalent Zinc Plating

GW39-16x33 by Couplamatic | GW Series Coupling | 1" Hose ID x M33x1.5 Thread Komatsu 30° Flare Female Swivel | Straight | Trivalent Zinc Plating

Sale price$36.79

Couplamatic Systems Inc.
GW Series - Komatsu 30° Flare - Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $34.58
40–79 $31.27
80+ $27.59
Discounts applied in cart/checkout.

Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • 33mm Female Komatsu
  • 1in Hose Barb
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

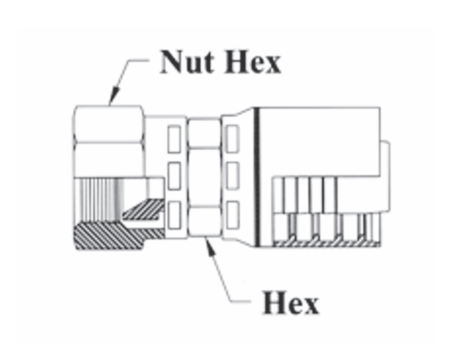

Part Number Hose ID Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW39-8x22 1/2" M22x1.5 7/8" 1" 43008U-22K
GW39-12x30 3/4" M30x1.5 1-1/8" 1-3/8" 43012U-30K
GW39-16x33 1" M33x1.5 1-3/8" 1-1/2" 43016U-33K

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
