GW37-8x15 by Couplamatic | GW Series Coupling | 1/2" Hose ID x M22x1.5 Thread DIN Light Universal Seat Female Swivel | Straight | Trivalent Zinc Plating

GW37-8x15 by Couplamatic | GW Series Coupling | 1/2" Hose ID x M22x1.5 Thread DIN Light Universal Seat Female Swivel | Straight | Trivalent Zinc Plating

Sale price$26.88

Couplamatic Systems Inc.
GW Series - DIN Light Universal Seat - Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $25.27
40–79 $22.85
80+ $20.16
Discounts applied in cart/checkout.

Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • L15 Female DIN
  • 1/2in Hose Barb
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

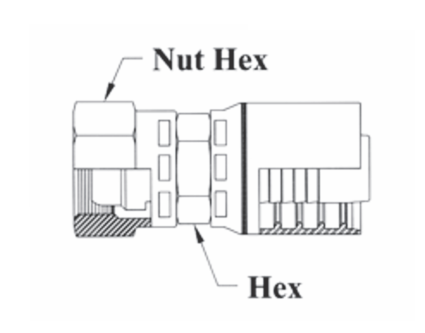

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW37-8x15 1/2" 15mm M22x1.5 7/8" 1-1/16" -
GW37-12x22 3/4" 22mm M30x2.0 1-1/8" 1-1/2" 43012U-22C
GW37-16x28 1" 28mm M36x2.0 1-3/8" 1-7/8" -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
