GW27-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1-5/16x12 Thread JIC 37° Long Drop Female Swivel | 90° Elbow | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
GW Series — 100R12 No-Skive Spiral
GW27 GW Series — JIC 37°, Female Swivel, Long Drop 90° Elbow
GW27 is the JIC 37°, Female Swivel, Long Drop 90° Elbow configuration of the GW Series, terminating SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.
1
What are the main product features?
- NO SKIVE REQUIRED
- The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
- Trivalent Zinc Plating
- Bite to the wire — the shell grips the hose reinforcement directly.
- Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2
Which sizes are available?

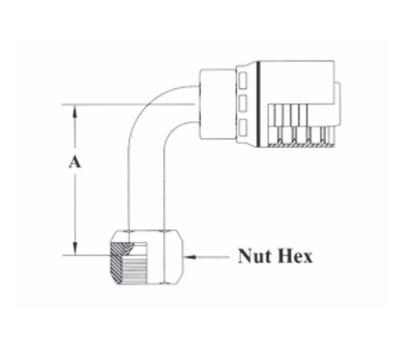

| Part Number | Hose ID | Tube Size | Thread Size | A-Drop Inches | Nut Hex |
|---|---|---|---|---|---|
| GW27-12x12 | 3/4" | 3/4" | 1-1/16x12 | 3.73" | 1-1/4" |
| GW27-16x16 | 1" | 1" | 1-5/16x12 | 4.50" | 1-1/2" |
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
