GW Series — 100R12 No-Skive Spiral
GW26 and GW31 GW Series — O-Ring Face Seal (ORF), Female Swivel
The GW Series O-Ring Face Seal female swivel couplings: GW26 straight and GW31 45° elbow, both no-skive hose ends for SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.
1
What are the main product features?
- NO SKIVE REQUIRED
- The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
- Trivalent Zinc Plating
- Bite to the wire — the shell grips the hose reinforcement directly.
- Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2
Which sizes are available in the GW26 straight?

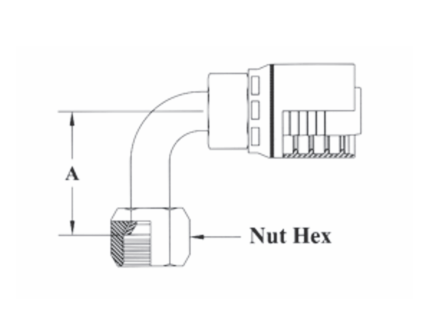

| Part Number | Hose ID | Tube Size | Thread Size | A-Drop Inches | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Weatherhead 430U | ||||||
| GW26-8x8 | 1/2" | 1/2" | 3/4x16 | 1.15" | 7/8" | 43008U-668 |
| GW26-8x10 | 1/2" | 5/8" | 7/8x14 | 1.23" | 1" | 43008U-670 |
| GW26-12x12 | 3/4" | 3/4" | 1-1/16x12 | 1.88" | 1-1/4" | 43012U-672 |
| GW26-12x16 | 3/4" | 1" | 1-5/16x12 | 2.25" | 1-1/2" | — |
| GW26-16x16 | 1" | 1" | 1-5/16x12 | 2.66" | 1-1/2" | 43016U-676 |
| GW26-20x20 | 1-1/4" | 1-1/4" | 1-5/8x12 | 3.31" | 2" | 43020U-677 |
| GW26-24x24 | 1-1/2" | 1-1/2" | 1-7/8x12 | 3.95" | 2-1/4" | 43024U-678 |
| GW26-32x32 | 2" | 2" | 2-1/2x12 | 4.64" | 2-7/8" | — |
3
Which sizes are available in the GW31 45° elbow?
| Part Number | Hose ID | Tube Size | Thread Size | A-Drop Inches | Hex Size |
|---|---|---|---|---|---|
| GW31-8x8 | 1/2" | 1/2" | 13/16x16 | 0.59 | 15/16" |
| GW31-8x10 | 1/2" | 5/8" | 1x14 | 0.68 | 1-1/8" |
| GW31-12x12 | 3/4" | 3/4" | 1-3/16x12 | 0.84 | 1-3/8" |
| GW31-12x16 | 3/4" | 1" | 1-7/16x12 | 1.14 | 1-5/8" |
| GW31-16x16 | 1" | 1" | 1-7/16x12 | 1.14 | 1-5/8" |
| GW31-20x20 | 1-1/4" | 1-1/4" | 1-11/16x12 | 1.07 | 1-7/8" |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully. GW31-10x10 and GW31-16x20 appear in the manufacturer catalogue but are not currently stocked, so they are not listed above.
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
