GW Series — 100R12 No-Skive Spiral
GW25 GW Series — JIC 37°, Female Swivel, 45° Elbow
GW25 is the JIC 37°, Female Swivel, 45° Elbow configuration of the GW Series, terminating SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.
1
What are the main product features?
- NO SKIVE REQUIRED
- The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
- Trivalent Zinc Plating
- Bite to the wire — the shell grips the hose reinforcement directly.
- Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2
Which sizes are available?

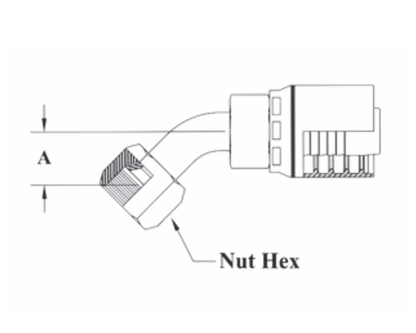

| Part Number | Hose ID | Tube Size | Thread Size | A-Drop Inches | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Weatherhead 430U | ||||||
| GW25-8x8 | 1/2" | 1/2" | 3/4x16 | 0.71" | 7/8" | 43008U-688 |
| GW25-8x10 | 1/2" | 5/8" | 7/8x14 | 0.84" | 1" | 43008U-690 |
| GW25-12x12 | 3/4" | 3/4" | 1-1/16x12 | 1.12" | 1-1/4" | 43012U-692 |
| GW25-12x16 | 3/4" | 1" | 1-5/16x12 | 1.15" | 1-1/2" | — |
| GW25-16x16 | 1" | 1" | 1-5/16x12 | 1.15" | 1-1/2" | 43016U-696 |
| GW25-20x20 | 1-1/4" | 1-1/4" | 1-5/8x12 | 1.69" | 2" | — |
| GW25-24x24 | 1-1/2" | 1-1/2" | 1-7/8x12 | 1.70" | 2-1/4" | — |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
