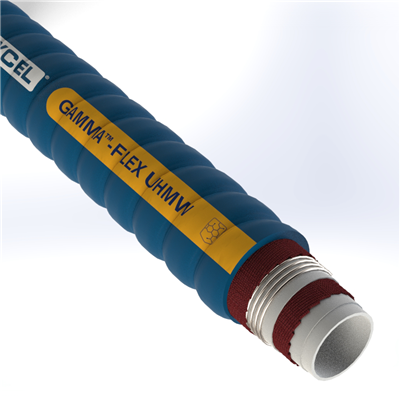

GUH20C1-1.0-Blue by Texcel | GAMMA™-FLEX UHMW Series | Ultra-High Molecular Weight Polyethylene Chemical Hose | 1" Hose ID | 200 PSI | 29 in/Hg Vacuum Rated | Blue
GAMMA™ by Texcel
FLEX UHMW Series | Ultra-High Molecular Weight Polyethylene Chemical Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Package Quantity: 100 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $19.46 |
| 8–14 | $18.63 |
| 15+ | $16.56 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service. | Tube: | Clear, ultra-high molecular weight polyethylene |
| Cover: | Blue or green*, EPDM (corrugated) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +250°F (intermittent) |
| Branding: | TEXCEL® GAMMA™-FLEX UHMW - CHEMICAL SUCTION AND DISCHARGE HOSE 200 PSI W.P. UHMW TUBE | Safety Note : | Temperature rating depends on specific chemical conveyed and concentration |
| Features: | Exceptional flexibility | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| GUH20C1-1.0-BLUE | 1" | 1-28/64" | 200 psi | 29 | 2.5" | 0.57 lbs |
| GUH20C1-1.25-BLUE | 1-1/4" | 1-45/64" | 200 psi | 29 | 2.75" | 0.62 lbs |
| GUH20C1-1.5-BLUE | 1-1/2" | 1-61/64" | 200 psi | 29 | 3" | 0.81 lbs |
| GUH20C1-2.0-BLUE | 2" | 2-31/64" | 200 psi | 29 | 4" | 1.11 lbs |
| GUH20C1-2.5-BLUE | 2-1/2" | 2-63/64" | 200 psi | 29 | 5" | 1.40 lbs |
| GUH20C1-3.0-BLUE | 3" | 3-35/64" | 200 psi | 29 | 6" | 1.77 lbs |
| GUH20C1-4.0-BLUE | 4" | 4-36/64" | 200 psi | 29 | 8" | 2.83 lbs |
| GUH20C1-6.0-BLUE | 6" | 6-53/64" | 200 psi | 29 | 20" | 5.50 lbs |
