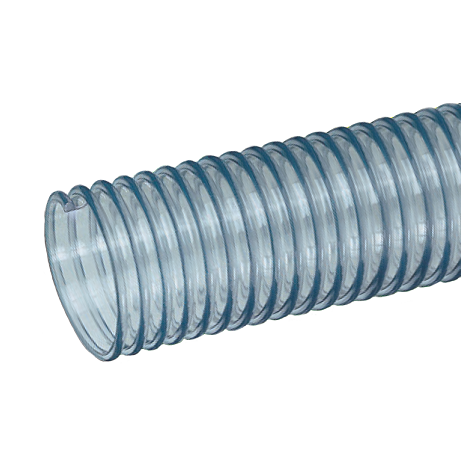

GTF800X50 Tigerflex by Kuriyama | GTF Series | Food Grade Ducting/Material Handling Hose | 8" ID | PVC | 50ft Length
Kuriyama

GTF800X50 Tigerflex by Kuriyama | GTF Series | Food Grade Ducting/Material Handling Hose | 8" ID | PVC | 50ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Application: Ducting, ventilation and fume removal, Food grade blower and ducting systems, Material handling - light duty, Pharmaceutical product transfer SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Other Features:
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) (GTF only) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
GTF200X100 2" 50.8mm 2.39" 60.8mm 15 PSI 6 PSI 21 in. Hg 12 in. Hg 2" 100ft 0.30 lbs
GTF250X50 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19in. Hg 10in. Hg 2" 50ft 0.39 lbs
GTF250X100 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19in. Hg 10in. Hg 2" 100ft 0.39 lbs
GTF300X50 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 3" 50ft 0.50 lbs
GTF300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 3" 100ft 0.50 lbs
GTF400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 100ft 0.77 lbs
GTF400X50 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 50ft 0.77 lbs
GTF600X50 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 50ft 1.08 lbs
GTF800X50 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in. Hg 3 in. Hg 8" 50ft 1.74 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
