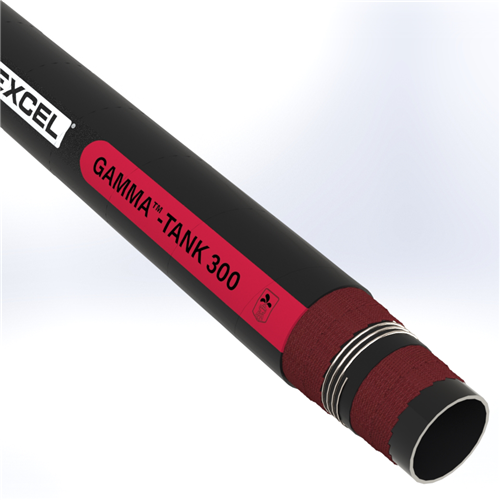

GTA30S1-4.0-200N by Texcel | GAMMA™-TANK 300 Series | Heavy-Duty Tank Truck Hose | 4" Hose ID | 300 PSI | 29 in/Hg Vacuum Rated | Black
GAMMA™ by Texcel
TANK 300 Series | 300psi Heavy-Duty Tank Truck Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $53.19 |
| 40–79 | $48.09 |
| 80+ | $42.44 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Designed for offshore drilling and other demanding applications where a high working pressure is needed and longer lengths with fewer connections are desired. | Tube: | Black, Nitrile, 55% aromatics (ORS) |
| Cover: | Black, Neoprene (corrugated) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +180°F |
| Branding: | TEXCEL® GAMMA™-TANK 300 - HEAVY-DUTY TANK TRUCK HOSE 300 PSI W.P. | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| GTA30S1-1.5-200N | 1-1/2" | 1-61/64" | 300 psi | 29 | 5" | 0.85 lbs |
| GTA30S1-2.0-200N | 2" | 2-31/64" | 300 psi | 29 | 7.5" | 1.16 lbs |
| GTA30S1-2.5-200N | 2-1/2" | 3" | 300 psi | 29 | 12" | 1.56 lbs |
| GTA30S1-3.0-200N | 3" | 3-38/64" | 300 psi | 29 | 16" | 2.26 lbs |
| GTA30S1-4.0-200N | 4" | 4-45/64" | 300 psi | 29 | 20" | 3.32 lbs |
