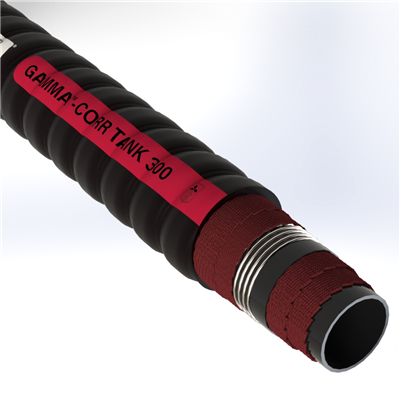

GTA30C1-6.0-100N by Texcel | GAMMA™-FLEX TANK 300 Series | Heavy-Duty Corrugated Tank Truck Hose | 6" Hose ID | 300 PSI | 29 in/Hg Vacuum Rated | Black
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Data: | |||
|---|---|---|---|
| Description: | Designed for offshore drilling and other demanding applications where a high working pressure is needed and longer lengths with fewer connections are desired. Corrugated cover for greater flexibility. | Tube: | Black, Nitrile, 55% aromatics (ORS) |
| Cover: | Black, Neoprene (corrugated) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 *(2" - 6") 3:1 *(8") | Temperature: | -40°F to +180°F |
| Branding: | TEXCEL® GAMMA™-TANK 300 - HEAVY-DUTY TANK TRUCK HOSE 300 PSI W.P. | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| GTA30C1-2.0-200N | 2" | 2-32/64" | 300 psi | 29 | 4" | 1.06 lbs |
| GTA30C1-3.0-200N | 3" | 3-39/64" | 300 psi | 29 | 7" | 1.72 lbs |
| GTA30C1-4.0-200N | 4" | 4-46/64" | 300 psi | 29 | 10" | 2.72 lbs |
| GTA30C1-6.0-100N | 6" | 6-60/64" | 300 psi | 29 | 20" | 5.41 lbs |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
