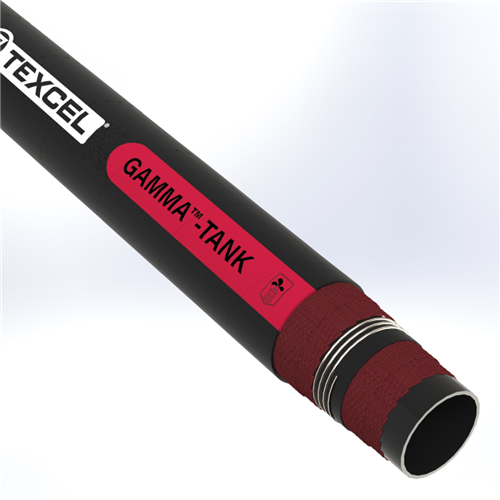

GTA15S1-1.0-100P by Texcel | GAMMA™-TANK Series | Tank Truck Hose | 1" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black
Texcel
TANK Series | Tank Truck Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.37 |
| 40–79 | $10.29 |
| 80+ | $9.08 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | The industry standard for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. | Tube: | Black, Nitrile, 55% aromatics (ORS), Minimum oil swell and low ECI value |
| Cover: | Black, Neoprene (smooth) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +180°F |
| Branding: | TEXCEL® GAMMA™-TANK - TANK TRUCK HOSE 150 PSI W.P. | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| GTA15S1-1.0-100P | 1" | 1-29/64" | 150 psi | 29 | 3" | 0.43 lbs |
| GTA15S1-1.25-200P | 1-1/4" | 1-43/64" | 150 psi | 29 | 4" | 0.70 lbs |
| GTA15S1-1.5-200P | 1-1/2" | 1-59/64" | 150 psi | 29 | 6" | 0.84 lbs |
| GTA15S1-2.0-200P | 2" | 2-29/64" | 150 psi | 29 | 8" | 1.10 lbs |
| GTA15S1-2.5-200P | 2-1/2" | 2-61/64" | 150 psi | 29 | 10" | 1.48 lbs |
| GTA15S1-3.0-200P | 3" | 3-32/64" | 150 psi | 29 | 13" | 1.79 lbs |
| GTA15S1-4.0-200P | 3" | 4-36/64" | 150 psi | 29 | 19" | 2.64 lbs |
