Petroleum Hose

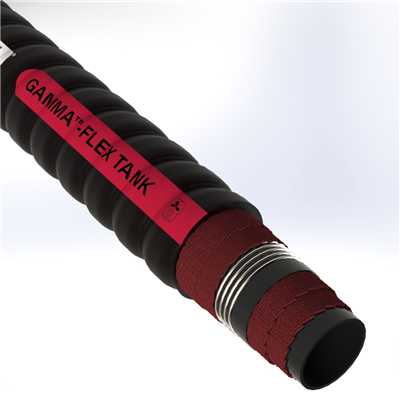

GAMMA™-FLEX TANK Corrugated Tank Truck Hose
A world-class hose for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose.
1
What is this hose used for?
- Tank trucks
- In-plant loading
- Oilfield loading
2
What are the key specifications?
Tube
Black, nitrile, 55% aromatics (ORS)
Cover
Black, neoprene (corrugated)
Reinforcement
High tensile tire cord plies; dual helix wire
Temperature Range
-40°F to +180°F
Safety Factor
4:1
Branding
TEXCEL® GAMMA™-FLEX TANK - FLEXIBLE TANK TRUCK HOSE 150 PSI W.P.
3
What are the main product features?
- Dramatic flexibility — one-to-one ratio up to 4" inside diameter, for ease of handling.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| GTA15F1-1.5-200N | 1-1/2" | 1-63/64" | 150 | 29 | 1.5" | 0.77 |
| GTA15F1-2.0-200N | 2" | 2-30/64" | 150 | 29 | 2" | 1.02 |
| GTA15F1-2.5-200N | 2-1/2" | 3" | 150 | 29 | 3.5" | 1.31 |
| GTA15F1-3.0-200N | 3" | 3-32/64" | 150 | 29 | 3" | 1.60 |
| GTA15F1-4.0-200N | 4" | 4-36/64" | 150 | 29 | 4" | 2.55 |
| GTA15F1-5.0-100N | 5" | 5-46/64" | 150 | 29 | 6" | 3.86 |
| GTA15F1-6.0-100N | 6" | 6-48/64" | 150 | 29 | 10" | 4.17 |
| GTA15F1-8.0-100N | 8" | 8-52/64" | 150 | 29 | 10" | 6.02 |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
