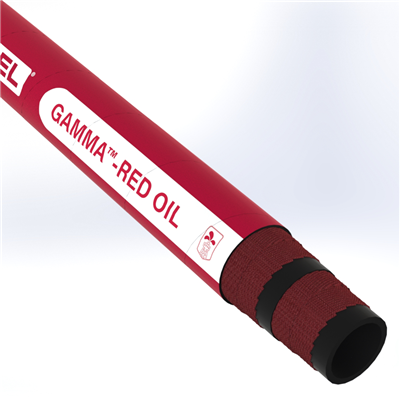

GRO15S1-3.0-200 by Texcel | GAMMA™-RED OIL Series | Oil Delivery Hose | 3" Hose ID | 100 PSI | Red

$1,761.65

Factory Order - Lead Time Applies

Hose Length: 100' Length

100' Length 200' Length Exact Length (FT)

Buy more, save moreDiscounts applied in cart/checkout.

Quantity:

Petroleum Hose

GAMMA™-RED OIL Oil Delivery Hose

Lightweight oil discharge hose for use in a variety of applications where an oil-resistant, soft-wall discharge hose is required.

⚠ CAUTION: Not recommended for use on reels.

Tube

Black, fuel- and oil-resistant NBR compound

Cover

Red, oil-, weather- and abrasion-resistant EPDM/NR/SBR compound

Reinforcement

High tensile tire cord plies and static wire

Temperature Range

-30°F to +180°F

Safety Factor

3:1

Branding

TEXCEL® GAMMA™-RED OIL - OIL DELIVERY HOSE 150 PSI W.P.

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Weight (lbs/ft)
GRO15S1-2.0-200	2"	2-32/64"	150	0.86
GRO15S1-3.0-200	3"	3-32/64"	150	1.24
GRO15S1-4.0-200	4"	4-32/64"	150	1.73
