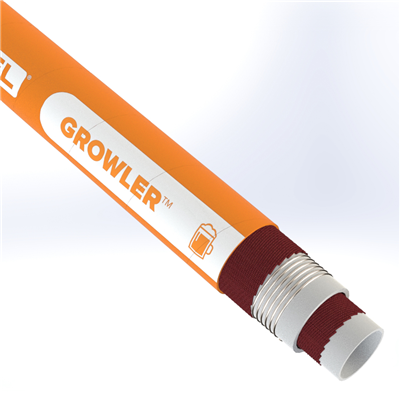

GRLR-2.0-100 by Texcel | GROWLER™ Series | Brewery Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Orange
Buy more, save moreDiscounts applied in cart/checkout.
Food & Sanitary Hose
GROWLER™ Brewery Hose
A heavy-duty brewery hose formulated for the suction and delivery of beer, wine, alcohol and soft drinks.
1
What is this hose used for?
FDA and USDA compliant, designed to ensure food quality and taste.
- Beer
- Wine
- Alcohol
- Soft drinks
2
What are the key specifications?
Tube
White, BIIR (butyl)
Cover
Orange, EPDM
Reinforcement
High strength synthetic plies with steel helix
Temperature Range
-40°F to +248°F
Safety Factor
3:1
Working Pressure
150 psi (10 bar)
Compliance
FDA, USDA compliant
Branding
TEXCEL® GROWLER™ BREWERS HOSE 150PSI (10 BAR) W.P. TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| GRLR-.75-100 | 3/4" | 1-1/4" | 150 | 29 | 1.5" | 0.48 |
| GRLR-1.0-100 | 1" | 1-29/64" | 150 | 29 | 1.75" | 0.58 |
| GRLR-1.25-100 | 1-1/4" | 1-47/64" | 150 | 29 | 3" | 0.74 |
| GRLR-1.5-100 | 1-1/2" | 1-62/64" | 150 | 29 | 4" | 0.97 |
| GRLR-2.0-100 | 2" | 2-33/64" | 150 | 29 | 6" | 1.26 |
It is recommended that all food grade hose be thoroughly flushed prior to initial use.
