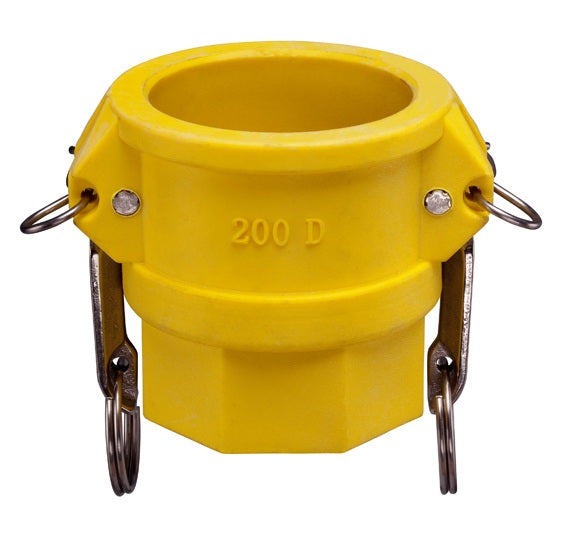

GRD400 by Kuriyama | GRD Series | Part D | Cam & Groove Adapter | 4" Coupler x 4" Female NPT | Nylon

GRD400 by Kuriyama | GRD Series | Part D | Cam & Groove Adapter | 4" Coupler x 4" Female NPT | Nylon

Sale price$52.34
Buy more, save moreDiscounts applied in cart/checkout.

What are the Applications?

  • Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.
  • Nylon has similar performance characteristics to polypropylene, but it can withstand higher temperatures, variable humidity, and has some additional chemical resistance versus the polypropylene.

What are the Features?

  • Nylon material is fiberglass reinforced for added strength and durability.
  • Good abrasion and chemical resistance.
  • Lightweight yet strong.
  • Precision molded to ensure consistency in form and function.

What are the Materials?

  • Fiberglass reinforced nylon.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Locking feature using safety clips to prevent disconnection during use.
  • Supplied 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • All 4" size female couplers supplied with three handles to provide added stability.
  • EPDM gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
GRD100 1" 100 PSI 0.18 lbs
GRD150 1-1/2" 100 PSI 0.50 lbs
GRD200 2" 100 PSI 0.58 lbs
GRD300 3" 50 PSI 1.04 lbs
GRD400 4" 50 PSI 1.48 lbs

Additional Product Data:

Series:
  • GRD Series
MAWP:

50

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
