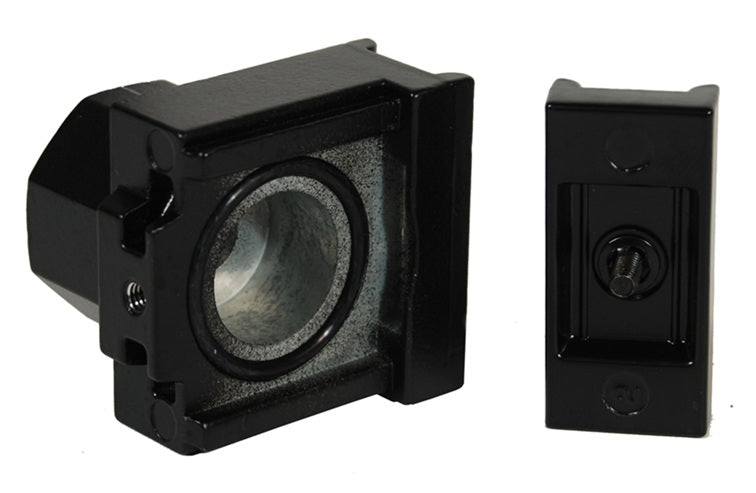

GPA-96-610 Wilkerson by Dixon Valve | Modular End Block, with 1/4" Female NPT | Used On C18, F18, F28, R18,R28, L18, L28 Series FRL Units

GPA-96-610 Wilkerson by Dixon Valve | Modular End Block, with 1/4" Female NPT | Used On C18, F18, F28, R18,R28, L18, L28 Series FRL Units

Sale price$29.77

Dixon Valve
Wilkerson | Modular Block

Useful for isolating and depressurizing a downstream unit requiring maintenance or replacement.
Buy More, Save More!
Quantity Price Each
10–39 $27.98
40–79 $25.30
80+ $22.33
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Wilkerson
Series:
  • C18 Series, F18 Series, F28 Series, R18 Series, R28 Series, L18 Series, L28 Series
Features:
  • Manifold Block:
    • Flexible installation can be installed after the filter or regulator, providing three additional 1/4" NPT tapped auxiliary ports.
    • 1/2" inlet/outlet ports non-tapped.
    • 1-17/32" width.
  • End Block:
    • When used with the modular sleeve, end blocks allow a single unit or a combination of units to be piped into the air system in the modular mode.
    • Allows ease of unit servicing or replacement without disturbing the air line connections.
Part Number Used On Wilkerson Series Description
GPA-95-919 C16, C26, F16, M16, F26, M26, R16, R26, L16, L26 Manifold Block, Three 1/4" NPT Auxiliary Ports
GPA-95-223 C16, C26, F16, M16, F26, M26, R16, R26, L16, L26 End Block, 1/4" NPT
GPA-95-224 C16, C26, F16, M16, F26, M26, R16, R26, L16, L26 End Block, 3/8" NPT
GPA-95-225 C16, C26, F16, M16, F26, M26, R16, R26, L16, L26 End Block, 1/2" NPT
GPA-96-610 C18, F18, F28, R18, R28, L18, L28 End Block, 1/4" NPT
GPA-96-611 C18, F18, F28, R18, R28, L18, L28 End Block, 3/8" NPT
GPA-96-612 C18, F18, F28, R18, R28, L18, L28 End Block, 1/2" NPT
GPA-96-613 C18, F18, F28, R18, R28, L18, L28 End Block, 3/4" NPT
