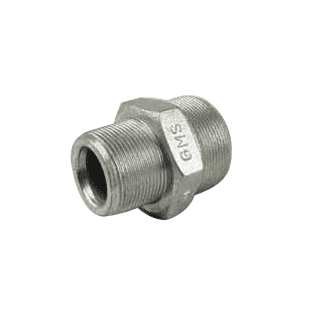

GMS100 by Jason Industrial | Ground Joint Coupling | Male Spud | 1" Spud Size | Steel

GMS100 by Jason Industrial | Ground Joint Coupling | Male Spud | 1" Spud Size | Steel

Sale price$19.99

Jason Industrial Inc. Couplings & Accessories - Ground Joint Couplings - Male Spud (NPS Male x NPT Male) - Steel
Buy More, Save More!
Quantity Price Each
10–39 $18.79
40–79 $16.99
80+ $14.99
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Steel
Overview:
  • An all purpose coupling, the female ground joint consists of a MALE STEM, WING NUT and FEMALE SPUD. The female spud has NPT threads to accept the NPT threads of a rigid connection or male NPT nipple. Widely used for air, water or steam, the ground joint is secured with an interlocking clamp.
  • By replacing the female spud of a ground joint coupling with a double or male spud, hose to hose ground joint connections or hose to rigid connections are simplified. Double spuds for hose to hose connections are threaded NPS MALE x NPS MALE. (GJ wing nut is also NPS). For hose to rigid connection, the male spud is threaded NPS MALE x NPT MALE.
Other Components:
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Spud Size
GMS050 1/2"
GMS075 3/4"
GMS100 1"
GMS125 1-1/4"
GMS150 1-1/2"
GMS200 2"
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
