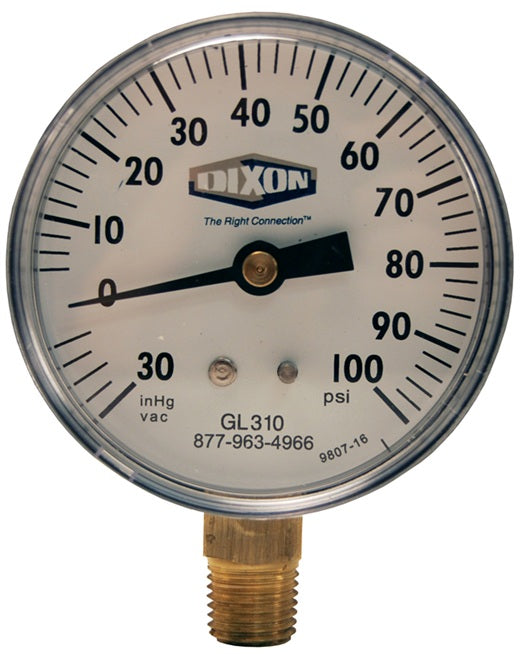

GL310 by Dixon Valve | Compound Gauge | Lower Mount | 2-1/2" Face | 1/4" Lower Mount | 0-100 PSI Range | ABS Plastic

GL310 by Dixon Valve | Compound Gauge | Lower Mount | 2-1/2" Face | 1/4" Lower Mount | 0-100 PSI Range | ABS Plastic

Sale price$30.09

Dixon Valve
Dixon® Gauge | Compound Gauge | Lower Mount

Designed for long, reliable service under rugged conditions.

Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement.
Buy More, Save More!
Quantity Price Each
10–39 $28.28
40–79 $25.58
80+ $22.57
Discounts applied in cart/checkout.

Product Data:

Series:
  • GL Series
Features:
  • ASME B40.1, Grade B accuracy (± 3-2-3 % accuracy).
Materials:
  • Case: ABS plastic, corrosion resistant
  • Bourdon tube: bronze
  • Socket: brass
  • Window: poly carbonate
  • Pointer: black aluminum
  • Movement: powerflex with polyester segment, designed for extended wear
Specifications:
  • Temperature range of -40°F to 150°F (-40°C to 66°C)
Term Meanings:
  • Figure Interval: Figure Interval (Increments between PSI numbers on gauge face).
  • Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).
2-1/2" Face
1/4" Center Back Mount
Part Number		 2-1/2" Face
1/4" Lower Mount
Part Number		 Mercury
(Hg)		 PSI Range Figure
Interval
(Hg / PSI)		 Minor
Gradient
(Hg / PSI)
GL310 30" 0-100 PSI 30 / 10 5 / 2
GL210 30" 0-160 PSI 30 / 20 5 / 5
GL110 30" 0-160 PSI 30 / 20 10 / 10
GL315 30" 0-200 PSI 30 / 20 10 / 10
