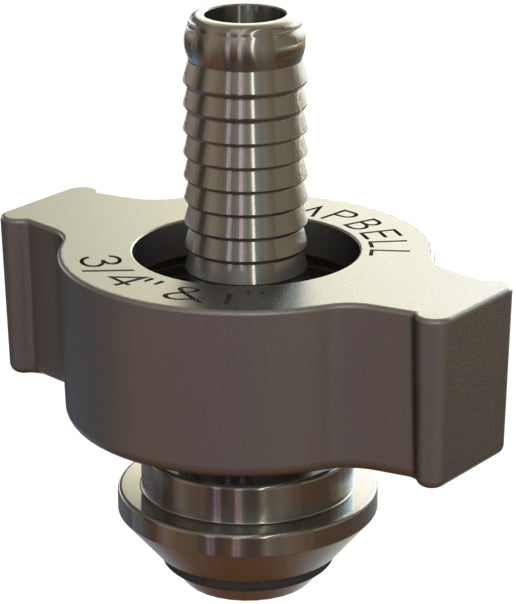

GJSS-3 by Campbell Fittings | Ground Joint Coupling | Hose Stem | 3/4" Hose Size x 3/4" Hose Barb | Viton® Seal | Straight | 316 Stainless Steel

$67.62

by Campbell
VITON® Seal Ground Joint Couplings:VITON® Seal Hose Stem

Quantity:

Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):

Seal Material(s):

Recommended Use:	High-pressure steam and air
Recommended Hose Attachments:	Interlocking Ferrules Interlocking U-bolt clamps
Features and Benefits:	Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test. Eliminates leaks with nut hand tightened. Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life. Spud does not contain plastic seat, extending working life. Interchangeable with old-style domestic ground joint couplings. Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose. Interlock groove locks ferrule into place for superior holding power.

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
