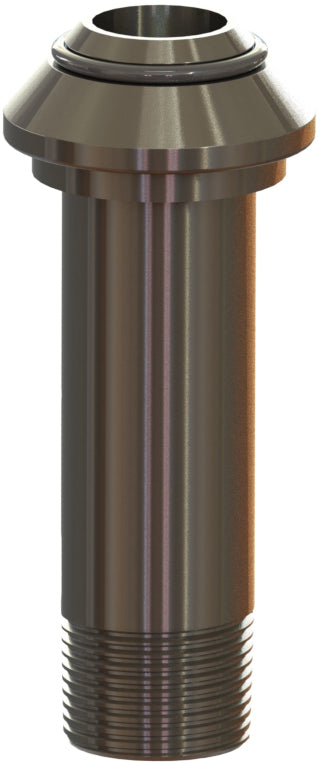

GJMSS-3 by Campbell Fittings | Ground Joint Coupling | Male End | 3/4" Viton Seal x 3/4" Male NPT Thread | Viton® Seal | Straight | 316 Stainless Steel

Sale price$212.39

by Campbell
VITON® Seal Ground Joint Couplings:VITON® Seal Male End


Buy More, Save More!
Quantity Price Each
5–19 $199.65
20–59 $180.53
60+ $159.29
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • 316 Stainless Steel
Seal Material(s):
  • Viton
Recommended Use:
  • High-pressure steam and air
Features and Benefits:
  • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
Part Number NPT
GJMSS-3 3/4"
GJMSS-4 1"
