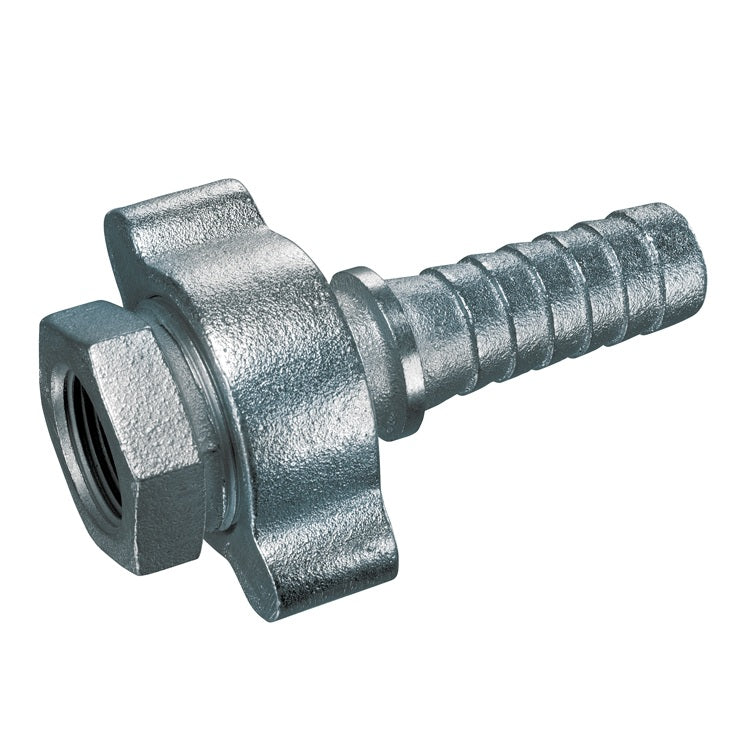

GJ-200 by Kuriyama | GJ Series | Ground Joint Coupling | Complete Set | with Wing Nut & Spud | 2" Hose Barb x 2" Female NPT Plated Ductile Iron
Kuriyama of America Inc.
GJ Series | Ground Joint Coupling | Complete Set | Plated Ductile Iron
Complete Set consists of: Hose Shank with Wing Nut and Female NPT Spud.
Designed for use in medium to high-pressure applications using steam, air, and fluids.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $65.53 |
| 40–79 | $59.25 |
| 80+ | $52.28 |
Discounts applied in cart/checkout.
What are the Features?
- Designed for use in medium to high-pressure applications using steam, air, and fluids.
- The metal-to-metal design provides for optimum sealing at high temperatures.
- Used in conjunction with interlocking bolt clamps.
- Couplings with hose barbs come with an interlocking collar to connect with the interlocking bolt clamps.
- Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds. Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.
What are the Materials?
- Ductile iron plated.
- ASTM A536, Grade 65/45/12.
What are the Specifications?
- Maximum Service Temperature: +450°F (+232°C)
| Part Number | Size (in) |
Water (PSI) |
Steam (PSI) |
Air (PSI) |
Weight Each (lbs) |
|---|---|---|---|---|---|
| GJ-050 | 1/2" | 600 PSI | 250 PSI | 600 PSI | 0.22 lbs |
| GJ-075 | 3/4" | 600 PSI | 250 PSI | 600 PSI | 0.43 lbs |
| GJ-100 | 1" | 600 PSI | 250 PSI | 600 PSI | 0.66 lbs |
| GJ-125 | 1-1/4" | 600 PSI | 250 PSI | 600 PSI | 1.28 lbs |
| GJ-150 | 1-1/2" | 600 PSI | 250 PSI | 600 PSI | 1.36 lbs |
| GJ-200 | 2" | 600 PSI | 250 PSI | 600 PSI | 2.32 lbs |
| GJ-250 | 2-1/2" | 450 PSI | 250 PSI | 450 PSI | 4.06 lbs |
| GJ-300 | 3" | 450 PSI | 250 PSI | 450 PSI | 5.63 lbs |
| GJ-400 | 4" | 250 PSI | 250 PSI | 250 PSI | 10.79 lbs |
Product Data:
Series:
MAWP:
600
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
