GH663-12 Aeroquip by Danfoss | MatchMate® Global 1/2 SAE Bend Radius Single Wire Braid Hydraulic Hose | SAE 100R19 | 0.75" ID
Aeroquip® by Danfoss

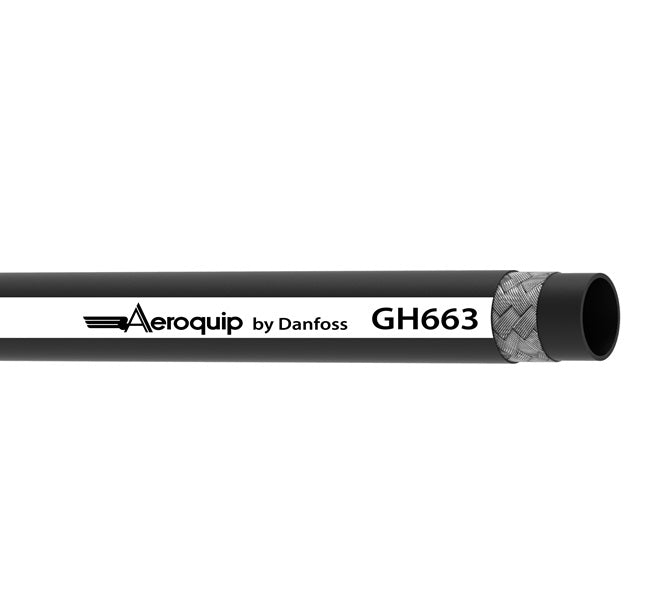

GH663 Series | MatchMate® Global 1/2 SAE Bend Radius Single Wire Braid Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $10.31 |
| 40–79 | $9.32 |
| 80+ | $8.23 |
Product Data:
2000
| Hose Properties: | |||
|---|---|---|---|
| Application: | Hydraulic system service with petroleum and waterbased fluids, for general industrial service. | SAE Rating: | Meets or exceeds: SAE 100R1 Type S, EN 853 1SN, ISO 1436-1 Type 1SN, DIN 20 022 Type 1SN |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | Single Wire Braid | Cover: | DURA-TUFF Synthetic Rubber |
| Temperature Range: | (-50°F to +260°F) (-46°C to +127°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH663-4 | 6 | 6,4mm | 0.25" | 13,5mm | 0.53" | 255,0 bar 192,0 bar |
3700* psi 2750 psi |
1020,0 bar 770,0 bar |
14800* psi 11000 psi |
51,0mm | 2.00" | 0,24 kg/m | 0.16 lbs/ft |
| GH663-6 | 10 | 9,7mm | 0.38" | 17,5mm | 0.69" | 235,0 bar 157,0 bar |
3400* psi 2250 psi |
940,0 bar 630,0 bar |
13600* psi 9000 psi |
62,5mm | 2.50" | 0,37 kg/m | 0.25 lbs/ft |
| GH663-8 | 12 | 12,7mm | 0.50" | 20,6mm | 0.81" | 200,0 bar 140,0 bar |
2900* psi 2000 psi |
800,0 bar 560,0 bar |
11600* psi 8000 psi |
90,0mm | 3.50" | 0,45 kg/m | 0.30 lbs/ft |
| GH663-12 | 19 | 19,1mm | 0.75" | 27,8mm | 1.09" | 138,0 bar 87,0 bar |
2000* psi 1250 psi |
552,0 bar 350,0 bar |
8000* psi 5000 psi |
120,0mm | 4.75" | 0,67 kg/m | 0.45 lbs/ft |
| GH663-16 | 25 | 25,4mm | 1.00" | 35,8mm | 1.41" | 103,0 bar 70,0 bar |
1500* psi 1000 psi |
412,0 bar 280,0 bar |
6000* psi 4000 psi |
150,0mm | 6.00" | 1,01 kg/m | 0.68 lbs/ft |
| GH663-20 | 31 | 31,8mm | 1.25" | 43,4mm | 1.71" | 69,0 bar | 1000 psi | 276,0 bar | 4000 psi | 210,4mm | 8.25" | 1,31 kg/m | 0.88 lbs/ft |
| GH663-24 | 38 | 38,1mm | 1.50" | 50,6mm | 1.99" | 52,0 bar | 750 psi | 208,0 bar | 3000 psi | 250,0mm | 10.00" | 1,56 kg/m | 1.05 lbs/ft |
| GH663-32 | 51 | 50,8mm | 2.00" | 64,0mm | 2.52" | 41,0 bar | 600 psi | 164,0 bar | 2400 psi | 315,0mm | 12.50" | 1,95 kg/m | 1.31 lbs/ft |
* Improved performance when used with Global Crimp fittings
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
