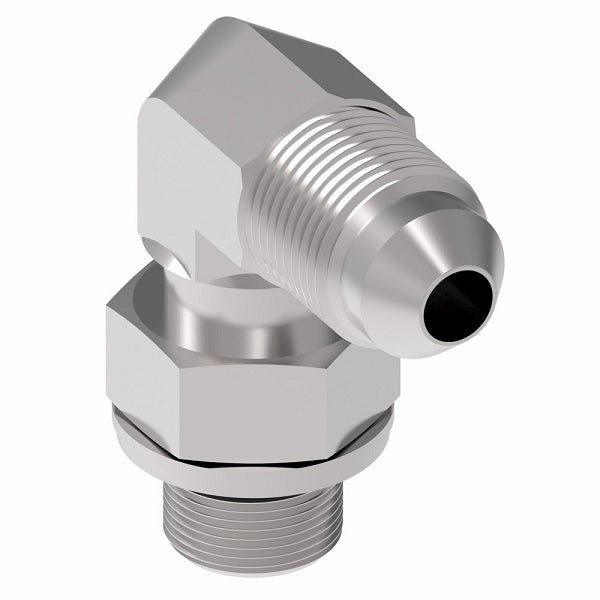

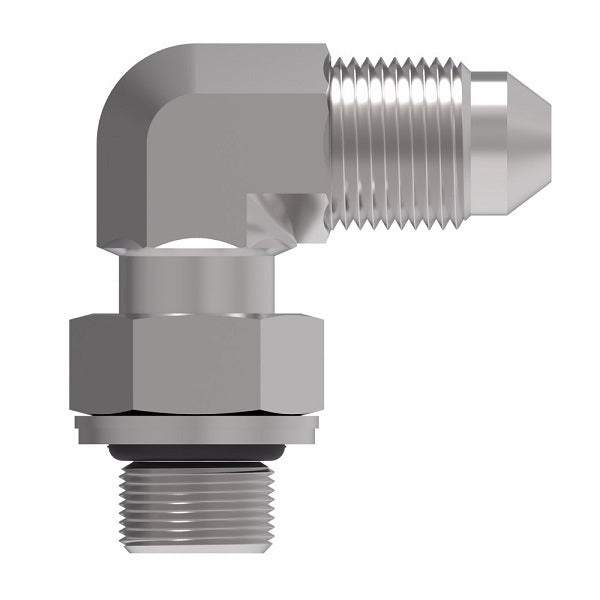

GG308-NP06-14 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -06 Male 37° JIC x M14 Male Metric | Steel
GG308-NP06-14 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -06 Male 37° JIC x M14 Male Metric | Steel
GG308-NP06-14 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -06 Male 37° JIC x M14 Male Metric | Steel

GG308-NP06-14 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -06 Male 37° JIC x M14 Male Metric | Steel

Sale price$41.60

Aeroquip® by Danfoss
Male 37° JIC/Metric (Adj.) Male Adapter
Male 37° JIC x Male Metric
90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $39.10
40–79 $35.36
80+ $31.20
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/8in Male JIC
  • 14mm Male Metric
Material(s):
  • Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A RØ
GG308-NP04-10 0.25" 7/16-20 M10 x 1.0 0.89" 1.02"
GG308-NP04-12 0.25" 7/16-20 M12 x 1.5 1.06" 1.24"
GG308-NP06-14 - 9/16-18 M14 x 1.5 - -
GG308-NP06-16 0.38" 9/16-18 M16 x 1.5 1.12" 1.44"
GG308-NP08-16 0.50" 3/4-16 M16 x 1.5 1.24" 1.44"
GG308-NP08-18 0.50" 3/4-16 M18 x 1.5 1.24" 1.44"
GG308-NP08-22 - - - - -
GG308-NP10-18 0.63" 7/8-14 M18 x 1.5 1.44" 1.56"
GG308-NP10-20 0.63" 7/8-14 M20 x 1.5 1.44" 1.69"
GG308-NP10-22 0.63" 7/8-14 M22 x 1.5 1.44" 1.69"
GG308-NP12-22 0.75" 1-1/16-12 M22 x 1.5 1.65" 1.79"
GG308-NP12-27 0.75" 1-1/16-12 M27 x 2.0 1.65" 1.93"
GG308-NP16-33 - - - - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
