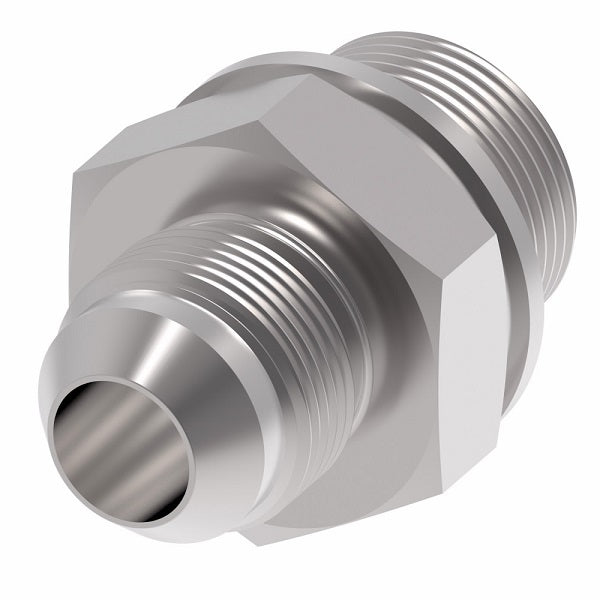

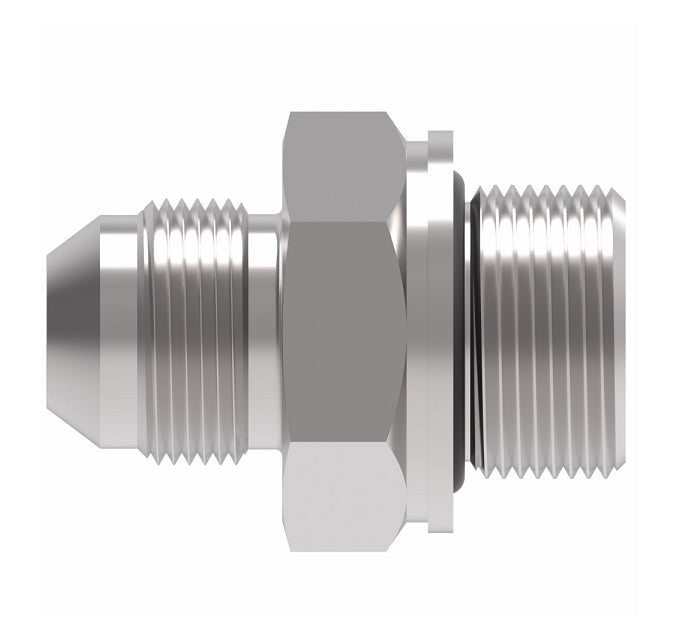

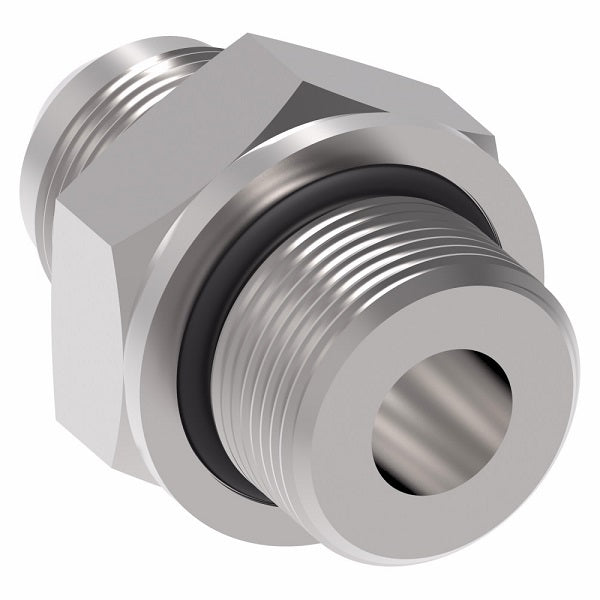

GG108-NP20-42 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -20 Male 37° JIC x M42 Male Metric | Steel
GG108-NP20-42 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -20 Male 37° JIC x M42 Male Metric | Steel
GG108-NP20-42 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -20 Male 37° JIC x M42 Male Metric | Steel

GG108-NP20-42 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -20 Male 37° JIC x M42 Male Metric | Steel

Sale price$70.40

Aeroquip® by Danfoss
Male 37° JIC/Male Metric Adapter
Male 37° JIC x Male Metric
Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $66.18
40–79 $59.84
80+ $52.80
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Male JIC
  • 42mm Male Metric
Material(s):
  • Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
GG108-NP04-10 0.25" 7/16-20 M10 x 1.0 1.14"
GG108-NP04-12 0.25" 7/16-20 M12 x 1.5 1.30"
GG108-NP04-14 - 7/16-20 M14 x 1.5 1.34"
GG108-NP05-10 0.31" 1/2-20 M10 x 1.0 1.14"
GG108-NP06-14 0.38" 9/16-18 M14 x 1.5 1.34"
GG108-NP06-16 0.38" 9/16-18 M16 x 1.5 1.34"
GG108-NP08-16 0.50" 3/4-16 M16 x 1.5 1.46"
GG108-NP08-18 0.50" 3/4-16 M18 x 1.5 1.48"
GG108-NP08-22 - 3/4-16 M22 x 1.5 1.58"
GG108-NP10-18 0.63" 7/8-14 M18 x 1.5 1.58"
GG108-NP10-20 0.63" 7/8-14 M20 x 1.5 1.69"
GG108-NP10-22 0.63" 7/8-14 M22 x 1.5 1.69"
GG108-NP12-22 0.75" 1-1/16-12 M22 x 1.5 1.83"
GG108-NP12-27 0.75" 1-1/16-12 M27 x 2.0 1.95"
GG108-NP16-33 1.00" 1-5/16-12 M33 x 2.0 2.11"
GG108-NP20-42 - - - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
