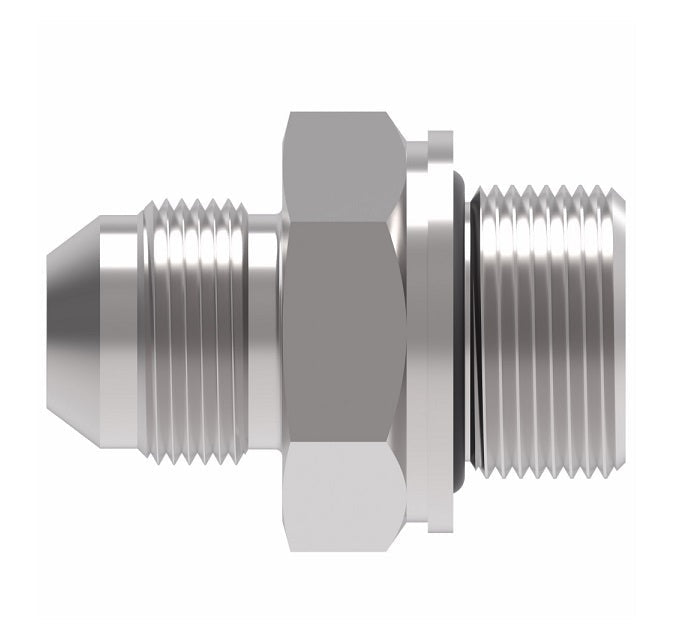

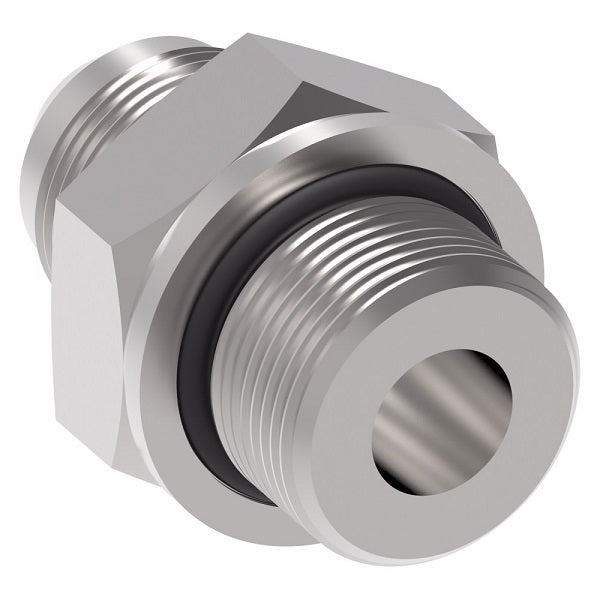

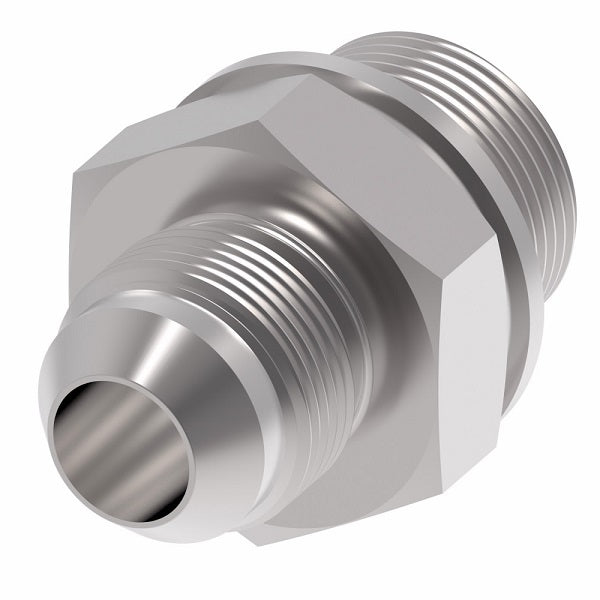

GG108-NP12-22 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -12 Male 37° JIC x M22 Male Metric | Steel
GG108-NP12-22 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -12 Male 37° JIC x M22 Male Metric | Steel
GG108-NP12-22 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -12 Male 37° JIC x M22 Male Metric | Steel

GG108-NP12-22 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -12 Male 37° JIC x M22 Male Metric | Steel

Sale price$22.67
Buy more, save moreDiscounts applied in cart/checkout.
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
GG108-NP04-10 0.25" 7/16-20 M10 x 1.0 1.14"
GG108-NP04-12 0.25" 7/16-20 M12 x 1.5 1.30"
GG108-NP04-14 - 7/16-20 M14 x 1.5 1.34"
GG108-NP05-10 0.31" 1/2-20 M10 x 1.0 1.14"
GG108-NP06-14 0.38" 9/16-18 M14 x 1.5 1.34"
GG108-NP06-16 0.38" 9/16-18 M16 x 1.5 1.34"
GG108-NP08-16 0.50" 3/4-16 M16 x 1.5 1.46"
GG108-NP08-18 0.50" 3/4-16 M18 x 1.5 1.48"
GG108-NP08-22 - 3/4-16 M22 x 1.5 1.58"
GG108-NP10-18 0.63" 7/8-14 M18 x 1.5 1.58"
GG108-NP10-20 0.63" 7/8-14 M20 x 1.5 1.69"
GG108-NP10-22 0.63" 7/8-14 M22 x 1.5 1.69"
GG108-NP12-22 0.75" 1-1/16-12 M22 x 1.5 1.83"
GG108-NP12-27 0.75" 1-1/16-12 M27 x 2.0 1.95"
GG108-NP16-33 1.00" 1-5/16-12 M33 x 2.0 2.11"
GG108-NP20-42 - - - -

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Male JIC
  • 22mm Male Metric
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
