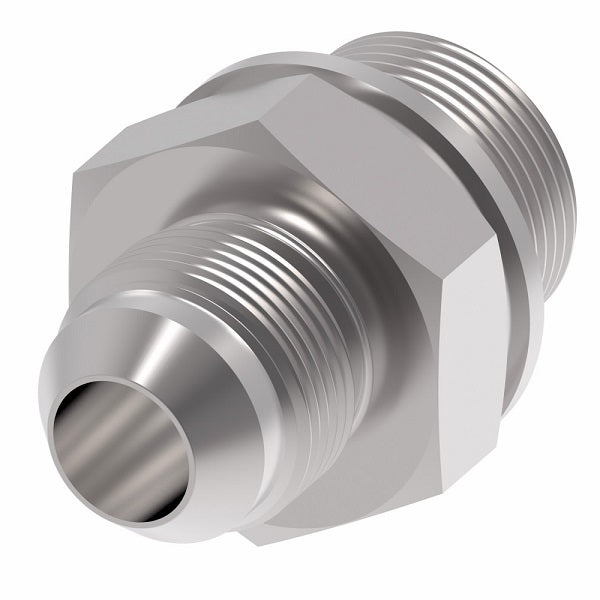

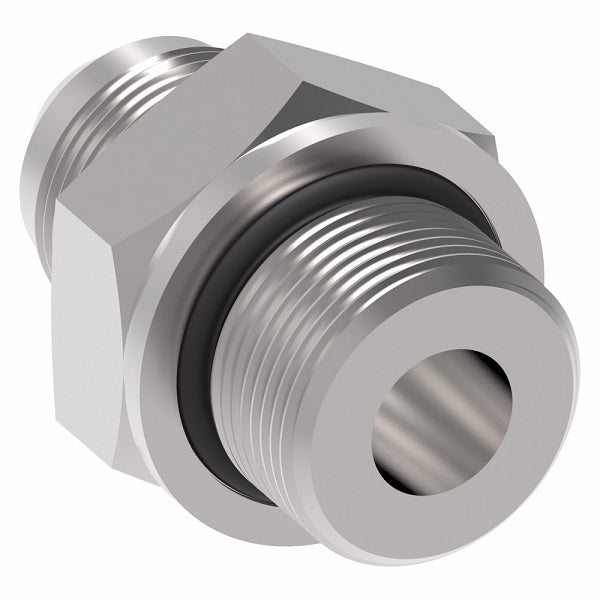

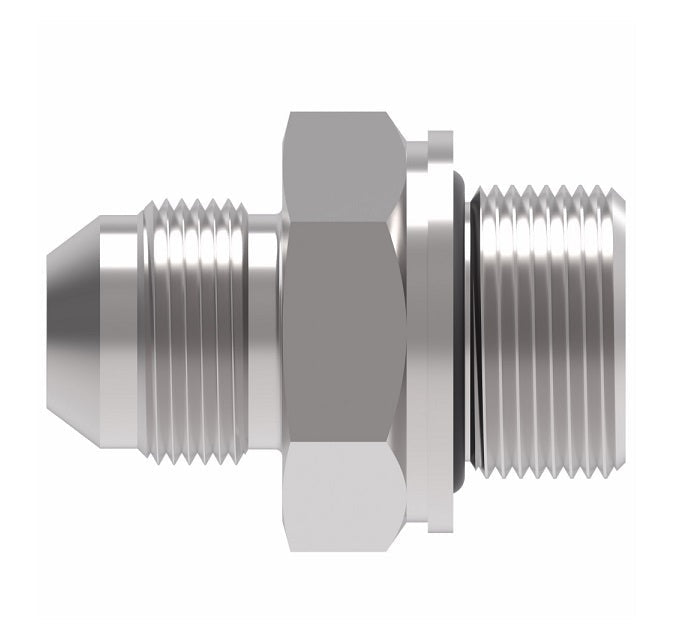

GG108-NP10-20 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -10 Male 37° JIC x M20 Male Metric | Steel
GG108-NP10-20 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -10 Male 37° JIC x M20 Male Metric | Steel
GG108-NP10-20 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -10 Male 37° JIC x M20 Male Metric | Steel

GG108-NP10-20 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -10 Male 37° JIC x M20 Male Metric | Steel

Sale price$30.32

Aeroquip® by Danfoss
Male 37° JIC/Male Metric Adapter
Male 37° JIC x Male Metric
Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $28.50
40–79 $25.77
80+ $22.74
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 5/8in Male JIC
  • 20mm Male Metric
Material(s):
  • Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
GG108-NP04-10 0.25" 7/16-20 M10 x 1.0 1.14"
GG108-NP04-12 0.25" 7/16-20 M12 x 1.5 1.30"
GG108-NP04-14 - 7/16-20 M14 x 1.5 1.34"
GG108-NP05-10 0.31" 1/2-20 M10 x 1.0 1.14"
GG108-NP06-14 0.38" 9/16-18 M14 x 1.5 1.34"
GG108-NP06-16 0.38" 9/16-18 M16 x 1.5 1.34"
GG108-NP08-16 0.50" 3/4-16 M16 x 1.5 1.46"
GG108-NP08-18 0.50" 3/4-16 M18 x 1.5 1.48"
GG108-NP08-22 - 3/4-16 M22 x 1.5 1.58"
GG108-NP10-18 0.63" 7/8-14 M18 x 1.5 1.58"
GG108-NP10-20 0.63" 7/8-14 M20 x 1.5 1.69"
GG108-NP10-22 0.63" 7/8-14 M22 x 1.5 1.69"
GG108-NP12-22 0.75" 1-1/16-12 M22 x 1.5 1.83"
GG108-NP12-27 0.75" 1-1/16-12 M27 x 2.0 1.95"
GG108-NP16-33 1.00" 1-5/16-12 M33 x 2.0 2.11"
GG108-NP20-42 - - - -
