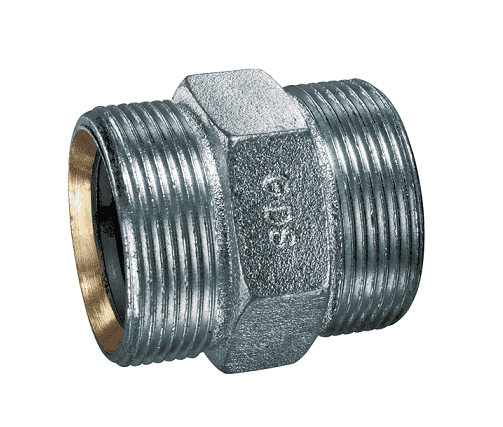

GDS-125 by Kuriyama | Ground Joint Coupling Double Spud with Copper Seal | 1-1/4" Male NPS x 1-1/4" Male NPS | Zinc Plate

GDS-125 by Kuriyama | Ground Joint Coupling Double Spud with Copper Seal | 1-1/4" Male NPS x 1-1/4" Male NPS | Zinc Plate

Sale price$29.17

Kuriyama Couplings™ - Ground Joint Couplings - Double Spud with Copper Seal - Male NPS x Male NPS - Zinc Plate

Buy More, Save More!
Quantity Price Each
10–39 $27.42
40–79 $24.79
80+ $21.88
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Seal Material(s):
  • Copper
Applications:
Features:
  • Interlocking Bolt Clamps recommended when assembling to a hose.
  • Steam: 250 PSI
  • Air: 600 PSI
  • Temperature: 450 deg. F (+232 deg. C)
Materials:
  • N/A
Part Number Male NPS x Male NPS Weight (Lbs.)
GDS-050 1/2" x 1/2" 0.40 lbs
GDS-075 3/4" x 3/4" 1.32 lbs
GDS-100 1" x 1" 1.32 lbs
GDS-125 1-1/4" x 1-1/4" 1.43 lbs
GDS-150 1-1/2" x 1-1/2" 1.41 lbs
GDS-200 2" x 2" 1.92 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
