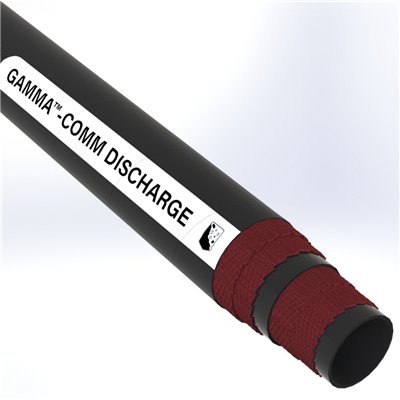

GCOMM-D-B1-2.5-100N by Texcel | GAMMA™-COMM DISCHARGE Series | Commodity Discharge Hose | 2-1/2" Hose ID | 125 PSI | Black
GAMMA™ by Texcel
COMM DISCHARGE Series | Commodity Discharge Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $32.25 |
| 40–79 | $29.16 |
| 80+ | $25.73 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Soft-wall hose designed with a high abrasion-resistant tube. Ideal for applications where the discharging of wet or dry abrasive media is required. | Tube: | Black, abrasion-resistant NR/SBR, static-dissipating materials |
| Cover: | Black, SBR | Reinforcement: | High tensile tire cord plies |
| Safety Factor: | 4:1 | Temperature: | -40°F to +180°F |
| Branding: | TEXCEL® GAMMA™-COMM DISCH - BULK COMMODITY DISCHARGE HOSE STATIC CONDUCTIVE TUBE XXX PSI W.P. | ||
| Part Number | Hose ID | Hose OD | Tube Gauge | Working Pressure (psi) | Number of Plies | Lbs./Ft. |
|---|---|---|---|---|---|---|
| GCOMM-D-B1-2.0-100N | 2" | 2-45/64" | 3/16" | 150 psi | 2 | 1.51 lbs |
| GCOMM-D-B1-2.5-100N | 2-1/2" | 3-13/64" | 3/16" | 125 psi | 2 | 1.82 lbs |
| GCOMM-D-B1-3.0-100N | 3" | 3-46/64" | 3/16" | 125 psi | 2 | 2.20 lbs |
| GCOMM-D-B1-4.0-100N | 4" | 4-45/64" | 3/16" | 100 psi | 2 | 2.79 lbs |
| GCOMM-D-B1-4.5-100N | 4-1/2" | 5-13/64" | 1/4" | 75 psi | 2 | 3.40 lbs |
| GCOMM-D-B1-5.0-100N | 5" | 5-45/64" | 1/4" | 75 psi | 2 | 3.78 lbs |
| GCOMM-D-B1-6.0-100N | 6" | 6-45/64" | 1/4" | 75 psi | 2 | 4.06 lbs |
