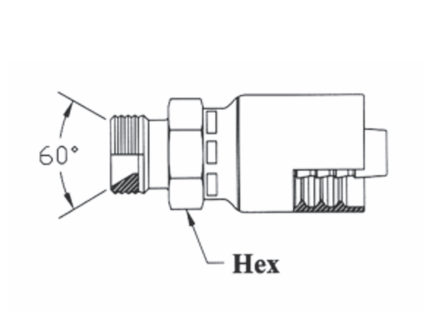

GC36-6x8 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x G-1/2-14 Thread Size Male Pipe Solid | 1/2" BSPP | Straight | Trivalent Zinc Plating

GC36-6x8 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x G-1/2-14 Thread Size Male Pipe Solid | 1/2" BSPP | Straight | Trivalent Zinc Plating

Sale price$16.12

Couplamatic Systems Inc.
Grip Crimp Series - BSPP - British Standard Parallel - 60° Seat - Male Pipe Solid
Buy More, Save More!
Quantity Price Each
10–39 $15.15
40–79 $13.70
80+ $12.09
Discounts applied in cart/checkout.

Product Data:

Series:
  • Grip Crimp Series
Shape:

Straight

Ends Configuration:
  • 1/2in Male BSPP
  • 3/8in Hose Barb
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID BSPP Size Thread Size Hex Size Cross Reference Part Numbers
Gates Mega Parker 43
GC36-4x4 1/4" 1/4" G-1/4-19 11/16" 4G-4MBSPP 1D943-4-4
GC36-6x6 3/8" 3/8" G-3/8-19 3/4" 6G-6MBSPP 1D943-6-6
GC36-6x8 3/8" 1/2" G-1/2-14 1" - -
GC53-8x6 1/2" 3/8" G-3/8-19 7/8" - -
GC36-8x8 1/2" 1/2" G-1/2-14" 1" 8G-8MBSPP 1D943-8-8
GC36-12x12 3/4" 3/4" G-3/4-14 1-1/8" 12G-12MBSPP 1D943-12-12

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
