GC27 Grip Crimp Coupling — JIC/SAE Dual Seat, Female Swivel, Long Drop 90° Elbow
GC27 is the JIC/SAE Dual Seat, Female Swivel, Long Drop 90° Elbow configuration of the Grip Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, Ultra R16, 100R17, Dura-Hyd R17, 100R19, 100R3 and 100R4 hose.
1
What are the main product features?
- Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
- Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
- Trivalent Zinc Plating
- Bite to the wire — the shell grips the hose reinforcement directly for a secure, permanent termination.
- Widest hose compatibility in the line — terminates one and two wire braid, spiral and fiber braid hose across the SAE range.
2
Which sizes are available?

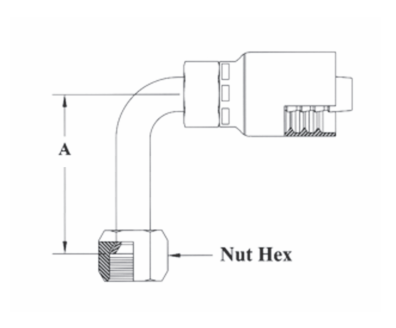

| Part Number | Hose ID | Thread Size | Tube OD | A Drop Inches | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|
| Gates Mega | Parker 43 | ||||||
| GC27-4x4 | 1/4" | 7/16x20 | 1/4" | 1.80" | 9/16" | 4G-4FJX90L | 14143-4-4 |
| GC27-4x5 | 1/4" | 1/2x20 | 5/16" | 1.80" | 5/8" | — | 14143-5-4 |
| GC27-4x6 | 1/4" | 9/16x18 | 3/8" | 2.18" | 11/16" | — | 14143-6-4 |
| GC27-6x4 | 3/8" | 7/16x20 | 1/4" | 1.80" | 9/16" | — | — |
| GC27-6x6* | 3/8" | 9/16x18 | 3/8" | 2.18" | 11/16" | 6G-6FJX90L | 14143-6-6 |
| GC27-6x8 | 3/8" | 3/4x16 | 1/2" | 2.50" | 7/8" | — | 14143-8-6 |
| GC27-8x8 | 1/2" | 3/4x16 | 1/2" | 2.50" | 7/8" | 8G-8FJX90L | 14143-8-8 |
| GC27-8x10 | 1/2" | 7/8x14 | 5/8" | 2.75" | 1" | 8G-10FJX90L | 14143-10-8 |
| GC27-10x10 | 5/8" | 7/8x14 | 5/8" | 2.75" | 1" | — | 14143-10-10 |
| GC27-12x12* | 3/4" | 1-1/16x12 | 3/4" | 3.73" | 1-1/4" | 12G-12FJX90L | 14143-12-12 |
| GC27-16x16 | 1" | 1-5/16x12 | 1" | 4.50" | 1-1/2" | 16G-16FJX90L | 14143-16-16 |
JIC Seat and thread only The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
