GC26-20x20 by Couplamatic | Grip Crimp Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating
Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 90° Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $73.43 |
| 20–59 | $66.40 |
| 60+ | $58.59 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

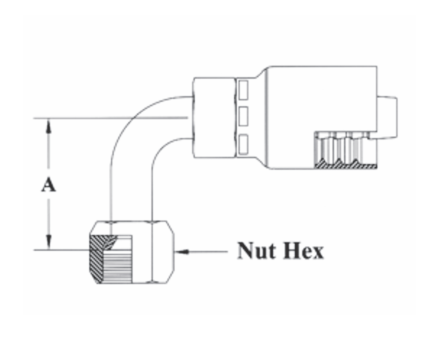

| Part Number | Hose ID | Thread Size | Tube OD | A Drop Inches | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|
| Gates Mega | Parker 43 | ||||||
| GC26-4x4 | 1/4" | 7/16x20 | 1/4" | 0.81" | 9/16" | 4G-4FJX90M | 13943-4-4 |
| GC26-4x5 | 1/4" | 1/2x20 | 5/16" | 0.83" | 5/8" | 4G-5FJX90M | 13943-5-4 |
| GC26-4x6* | 1/4" | 9/16x18 | 3/8" | 0.91" | 11/16" | 4G-6FJX90M | 13943-6-4 |
| GC26-6x4 | 3/8" | 7/16X20 | 1/4" | 0.81" | 9/16" | - | 13943-4-6 |
| GC26-6x5 | 3/8" | 1/2x20 | 5/16" | 0.83" | 5/8" | - | 13943-5-6 |
| GC26-6x6* | 3/8" | 9/16x18 | 3/8" | 0.91" | 11/16" | 6G-6FJX90M | 13943-6-6 |
| GC26-6x8 | 3/8" | 3/4x16 | 1/2" | 1.15" | 7/8" | 6G-8FJX90M | 13943-8-6 |
| GC26-8x8 | 1/2" | 3/4x16 | 1/2" | 1.15" | 7/8" | 8G-8FJX90M | 13943-8-8 |
| GC26-8x10 | 1/2" | 7/8x14 | 5/8" | 1.23" | 1" | 8G-10FJX90M | 13943-10-8 |
| GC26-10x10 | 5/8" | 7/8x14 | 5/8" | 1.23" | 1" | 10G-10FJX90S | 13943-10-10 |
| GC26-10x12* | 5/8" | 1-1/16x12 | 3/4" | 1.88" | 1-1/4" | 10G-12FJX90S | 13943-12-10 |
| GC26-12x10 | 3/4" | 7/8x14 | 5/8" | 1.23" | 1" | 12G-10FJX90M | 13943-10-12 |
| GC26-12x12* | 3/4" | 1-1/16x12 | 3/4" | 1.88" | 1-1/4" | 12G-12FJX90M | 13943-12-12 |
| GC26-12x16* | 3/4" | 1-5/16x12 | 1" | 2.20" | 1-1/2" | - | 13943-12-12 |
| GC26-16x16* | 1" | 1-5/16x12 | 1" | 2.20" | 1-1/2" | 16G-16FJX90M | 13943-12-12 |
| GC26-20x20 | 1-1/4" | 1-5/8x12 | 1-1/4" | 3.31" | 2" | 20G-20FJX90M | 13943-20-20 |
*JIC Seat and thread only
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
