GC14-8x8 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 1/2-14 Thread Size Male Swivel NPTF | 90° Elbow

GC14-8x8 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 1/2-14 Thread Size Male Swivel NPTF | 90° Elbow

Sale price$21.74

Couplamatic Systems Inc.
Grip Crimp Series - NPTF - Male Swivel 90°
Buy More, Save More!
Quantity Price Each
10–39 $20.44
40–79 $18.48
80+ $16.31
Discounts applied in cart/checkout.

Product Data:

Series:
  • Grip Crimp Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Male NPTF
  • 1/2in Hose Barb
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

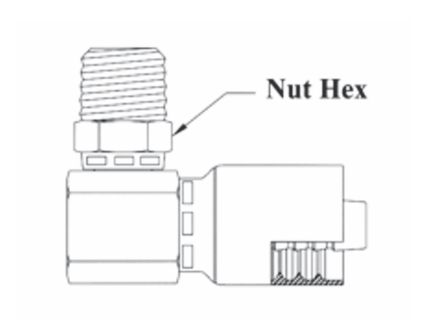

Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC14-4x4 1/4" 1/4" 1/4-18 5/8" - 11L43-4-4
GC14-6x6 3/8" 3/8" 3/8-18 3/4" 6G-6MPX90 11L43-6-6
GC14-6x8 3/8" 1/2" 1/2-14 7/8" 6G-8MPX90 11L43-8-6
GC14-8x8 1/2" 1/2" 1/2-14 7/8" 8G-8MPX90 11L43-8-8
GC14-12x12 3/4" 3/4" 3/4-14 1-1/4" - 11L43-12-12
GC14-16x16 1" 1" 1-11-1/2 1-3/8" - -

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.

Please check hose cut off factor, tube length, and tube drop carefully.
