GC05-12x12 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x 3/4-14 Thread Size Female Swivel NPSM | Straight | Trivalent Zinc Plating
Couplamatic Systems Inc.
Grip Crimp Series - NPSM - Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.74 |
| 40–79 | $16.04 |
| 80+ | $14.15 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

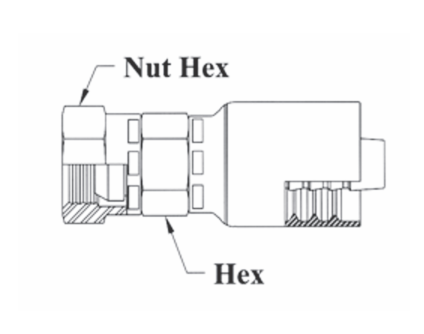

| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|
| Gates Mega | Parker 43 | ||||||
| GC05-4x4 | 1/4" | 1/4" | 1/4-18 | 9/16" | 11/16" | 4G-4FPX | 10743-4-4 |
| GC05-6x6 | 3/8" | 3/8" | 3/8-18 | 11/16" | 7/8" | 6G-6FPX | 10743-6-6 |
| GC05-6x8 | 3/8" | 1/2" | 1/2-14 | 3/4" | 1" | - | 10743-8-6 |
| GC05-8x8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 1" | 8G-8FPX | 10743-8-8 |
| GC05-12x12 | 3/4" | 3/4" | 3/4-14 | 1-1/8" | 1-1/4" | 12G-12FPX | 10743-12-12 |
| GC05-16x16 | 1" | 1" | 1-11-1/2 | 1-3/8" | 1-1/2" | 16G-16FPX | 10743-16-16 |
| GC05-20x20 | 1-1/4" | 1-1/4" | 1-1/4-11-1/2 | 1-11/16" | 1-7/8" | - | 10743-20-20 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
