GC04-6x6 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 3/8-18 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating | Pack of 20
Couplamatic Systems Inc.
Grip Crimp Series - NPTF - Male Swivel
Package Quantity: 20 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $123.33 |
| 20–59 | $111.52 |
| 60+ | $98.40 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

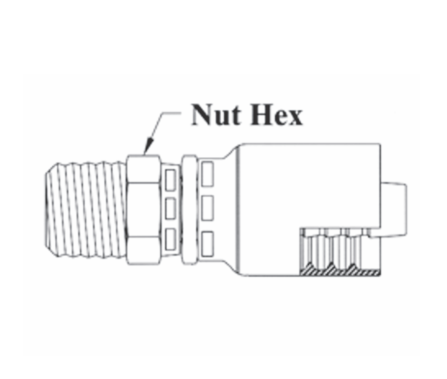

| Part Number | Hose ID | Pipe Size | Thread Size | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Gates Mega | Parker 43 | |||||
| GC04-4x2 | 1/4" | 1/8" | 1/8-27 | 5/8" | 11343-2-4 | |
| GC04-4x4 | 1/4" | 1/4" | 1/4-18 | 5/8" | 4G-4MPX | 11343-4-4 |
| GC04-4x6 | 1/4" | 3/8" | 3/8-18 | 3/4" | 4G-6MPX | 11343-6-4 |
| GC04-6x4 | 3/8" | 1/4" | 1/4-18 | 3/4" | 6G-4MPX | 11343-4-6 |
| GC04-6x6 | 3/8" | 3/8" | 3/8-18 | 3/4" | 6G-6MPX | 11343-6-6 |
| GC04-6x8 | 3/8" | 1/2" | 1/2-14 | 7/8" | 6G-8MPX | 11343-8-6 |
| GC04-8x6 | 1/2" | 3/8" | 3/8-18 | 3/4" | 8G-6MPX | 11343-6-8 |
| GC04-8x8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 8G-8MPX | 11343-8-8 |
| GC04-12x12 | 3/4" | 3/4" | 3/4-14 | 1-1/4" | 12G-12MPX | 11343-12-12 |
| GC04-16x16 | 1" | 1" | 1-11-1/2 | 1-3/8" | 16G-16MPX | 11343-16-16 |
- Swivel for installation purposes only. Leakage may occur at low pressure.
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
| Bite to the Wire Hydraulic Hose ends for: | ||||||
|---|---|---|---|---|---|---|
| 100R1/1SN thin cover (57MB-1, 56MB-1) | 100R2 Thin Cover (57MB-2, 56MB-2) | 2SN | 2SK | HY-PLUS I (HPI), & III ( HPIII) | 100R16/2SC (R16) | Dura-Hyd R16 (DH16) |
| Dura-Hyd EX R16 (DHEX16) | Ultra R16 (ULTRA-R16) | 100R17 (R17 & R17R) | Dura-Hyd R17 (DH17 & WDH17) | 100R3 (3319A) | Jack hose (Male NPTF Solid Only) (JH2) | |
