GC01-4x6 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 3/8-18 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 20
Couplamatic Systems Inc.

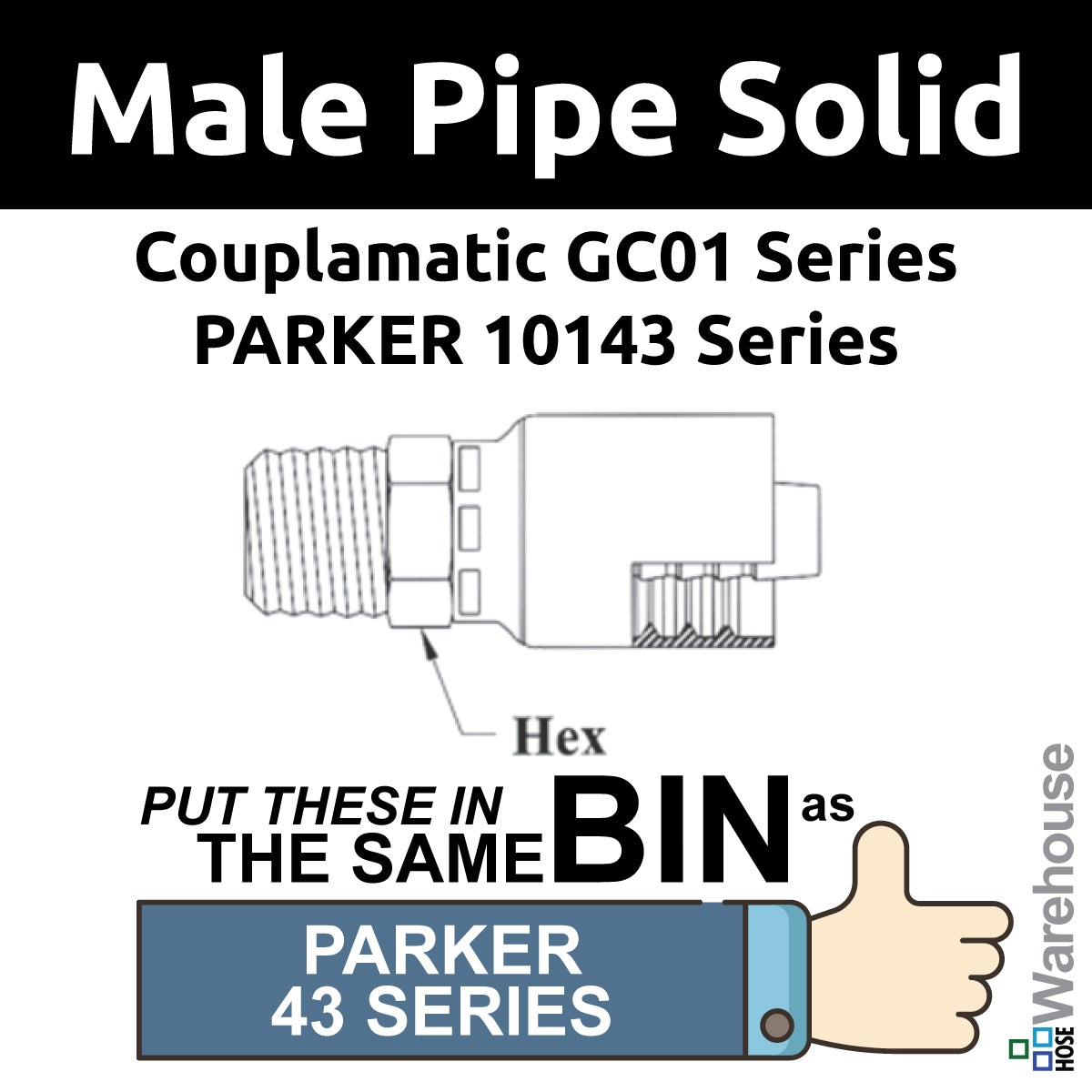

Grip Crimp Series - NPTF - Male Solid
Package Quantity: 20 EA
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Gates Mega | Parker 43 | |||||
| GC01-4x2 | 1/4" | 1/8" | 1/8-27 | 9/16" | 4G-2MP | 10143-2-4 |
| GC01-4x4 | 1/4" | 1/4" | 1/4-18 | 9/16" | 4G-4MP | 10143-4-4 |
| GC01-4x6 | 1/4" | 3/8" | 3/8-18 | 11/16" | 4G-6MP | 10143-6-4 |
| GC01-4x8 | 1/4" | 1/2" | 1/2-14 | 7/8" | 4G-8MP | 10143-8-4 |
| GC01-6x4 | 3/8" | 1/4" | 1/4-18 | 3/4" | 6G-4MP | 10143-4-6 |
| GC01-6x6 | 3/8" | 3/8" | 3/8-18 | 3/4" | 6G-6MP | 10143-6-6 |
| GC01-6x8 | 3/8" | 1/2" | 1/2-14 | 7/8" | 6G-8MP | 10143-8-6 |
| GC01-8x4 | 1/2" | 1/4" | 1/4-18 | 7/8" | 8G-4MP | 10143-4-8 |
| GC01-8x6 | 1/2" | 3/8" | 3/8-18 | 7/8" | 8G-6MP | 10143-6-8 |
| GC01-8x8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 8G-8MP | 10143-8-8 |
| GC01-8x12 | 1/2" | 3/4" | 3/4-14 | 1-1/8" | 8G-12MP | 10143-12-8 |
| GC01-10x8 | 5/8" | 1/2" | 1/2-14 | 15/16" | 10G-8MP | 10143-8-10 |
| GC01-10x12 | 5/8" | 3/4" | 3/4-14 | 1-1/8" | 10G-12MP | 10143-12-10 |
| GC01-12x8 | 3/4" | 1/2" | 1/2-14 | 1-1/8" | 12G-8MP | 10143-8-12 |
| GC01-12x12 | 3/4" | 3/4" | 3/4-14 | 1-1/8" | 12G-12MP | 10143-12-12 |
| GC01-12x16 | 3/4" | 1" | 1-11-1/2 | 1-3/8" | 12G-16MP | 10143-16-12 |
| GC01-16x12 | 1" | 3/4" | 3/4-14 | 1-3/8" | 16G-12MP | 10143-12-16 |
| GC01-16x16 | 1" | 1" | 1-11-1/2 | 1-3/8" | 16G-16MP | 10143-16-16 |
| GC01-20x20 | 1-1/4" | 1-1/4" | 1-1/4-11-1/2 | 1-11/16" | 20G-20MP | 10143-20-20 |
| GC01-24x24 | 1-1/2" | 1-1/2" | 1-1/2-11-1/2 | 2" | - | 10143-24-24 |
| GC01-32x32 | 2" | 2" | 2-11-1/2 | 2-1/2" | - | 10143-32-32 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
