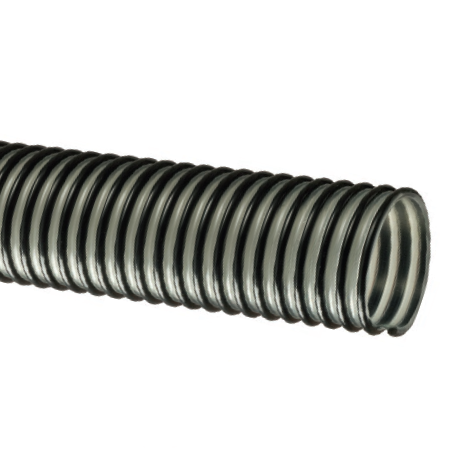

GC-C500X100 Tigerflex by Kuriyama | GC-C Series | Ground Cover Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 100ft Length
Kuriyama

GC-C500X100 Tigerflex by Kuriyama | GC-C Series | Ground Cover Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 100ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Material handling - heavy duty abrasive, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility. Allows for easier unwinding and winding on hose reels.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
GC-C400X100 4" 101.6mm 4.59" 116.6mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 6" 100ft 1.00 lbs
GC-C500X100 5" 127.0mm 5.57" 141.5mm 30 PSI 15 PSI 25 in. Hg 20 in. Hg 10" 100ft 1.80 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
