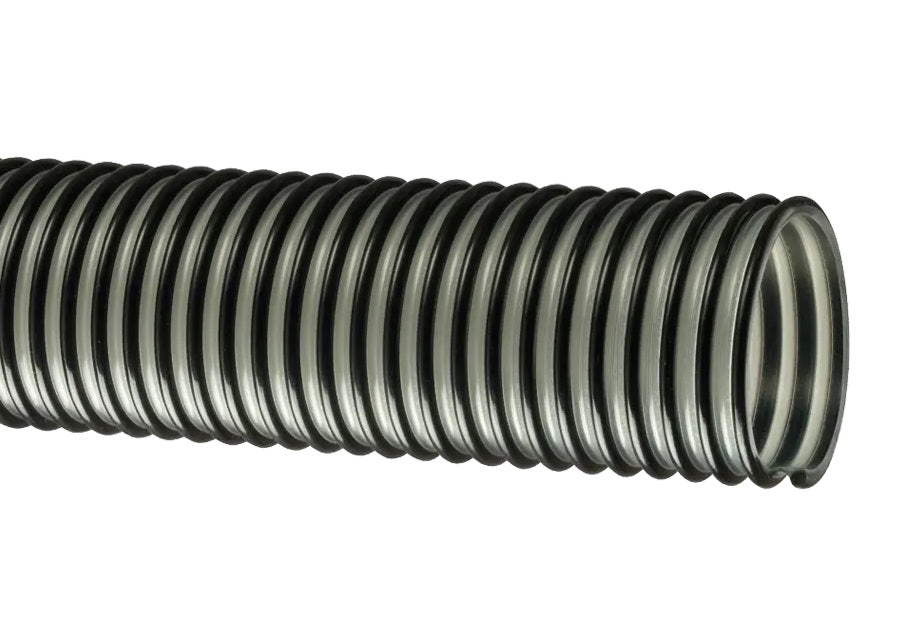

GC-C400X100 Tigerflex® Ground Cover by Kuriyama | GC-C™ Series | Heavy Duty Material Handling Hose | PVC & Polyurethane | 4" ID | 4.59" OD | 100ft Length

GC-C400X100 Tigerflex® Ground Cover by Kuriyama | GC-C™ Series | Heavy Duty Material Handling Hose | PVC & Polyurethane | 4" ID | 4.59" OD | 100ft Length

Sale price$2,450.57
p>Kuriyama of America Inc.
Tigerflex® | Ground Cover GC-C™ Series | Heavy-Duty Material Handling Hose with Grounding Wire | Polyurethane & Polypropylene

Designed for heavy-duty abrasive material handling.

Ideal for delivering mulch, bark, wood chips, soil, seed, compost, and other surfacing materials.

Made in the USA.


Package Quantity: 100 Foot

Buy More, Save More!
Quantity Price Each
4–7 $2,303.54
8–14 $2,205.51
15+ $1,960.46
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Ground Cover
  • Tigerflex
Series:
  • GC-C Series
Color(s):
  • Black & Clear/Semi-Clear
Applications: Material handling - heavy duty abrasive.
Mulch, bark, wood chips and other surfacing material delivery.
Soil, seed and compost delivery.
Tube: Polyurethane liner. Reinforcement: Rigid PVC helix.
Cover: PVC Service Temperature Range: -40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Abrasion Resistant Polyurethane Liner - Designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses.
  • "Cold-Flex" Materials - Hose remains flexible in subzero temperatures.
  • Transparent Construction - "See-the-flow." Allows for visual confi rmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility. Allows for easier unwinding and winding on hose reels.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
GC-C400X100 4" 101.6mm 4.59" 116.6mm 30 PSI 15 PSI 28 in Hg 25 in Hg 6" 1.00 lbs
GC-C500X100 5" 127.0mm 5.57" 141.5mm 30 PSI 15 PSI 25 in Hg 20 in Hg 10" 1.80 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
