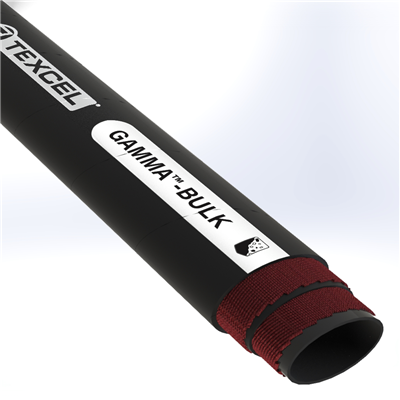

GBU75S1B-5-4-100- by Texcel | GAMMA™-BULK Series | Dry Bulk Material Discharge Hose | 5" Hose ID | 75 PSI | Black
GAMMA™ by Texcel
BULK Series | Dry Bulk Material Discharge Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $41.49 |
| 40–79 | $37.52 |
| 80+ | $33.11 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | High heat-resisting EPDM blower hose made with premium-grade materials for reliable service life when connecting the blower to flow lines on dry-bulk trailers. | Tube: | Black, high heat-resisting EPDM |
| Cover: | Black or brown*, smooth high heat-resisting EPDM | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +300°F continuous; 350°F intermittent |
| Branding: | TEXCEL® GAMMA™ - HEAT - HOT AIR BLOWER HOSE 150 PSI W.P. | ||
| Part Number | Hose I.D. | Tube Gauge | Hose OD | Working Pressure (psi) | Number of Plies | Lbs./Ft |
|---|---|---|---|---|---|---|
| GBU75S1B-4-4-100 | 4" | 1/8" | 4-28/64" | 75 | 2 | 1.72 lbs |
| GBU75S1B-4-6-100 | 4" | 3/16" | 4-40/64" | 75 | 2 | 2.20 lbs |
| GBU75S1B-4-8-100 | 4" | 1/4" | 4-51/64" | 75 | 2 | 2.61 lbs |
| GBU75S1B-4-12-100 | 4" | 3/8" | 5-3/64" | 75 | 2 | 2.96 lbs |
| GBU75S1B-5-4-100 | 5" | 1/8" | 5-30/64" | 75 | 2 | 2.27 lbs |
| GBU75S1B-5-6-100 | 5" | 3/16" | 5-40/64" | 75 | 2 | 2.75 lbs |
| GBU75S1B-5-8-100 | 5" | 1/4" | 5-51/64" | 75 | 2 | 3.25 lbs |
