Sale price$79.52

Danfoss A/C & Refrigeration

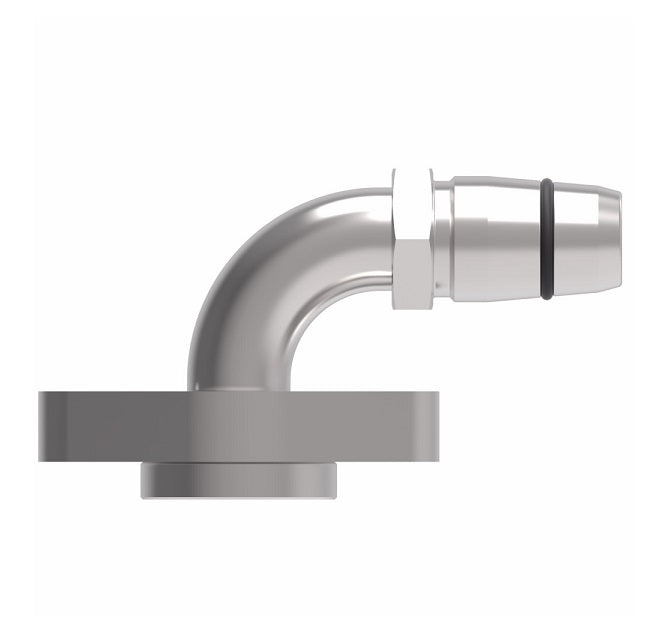

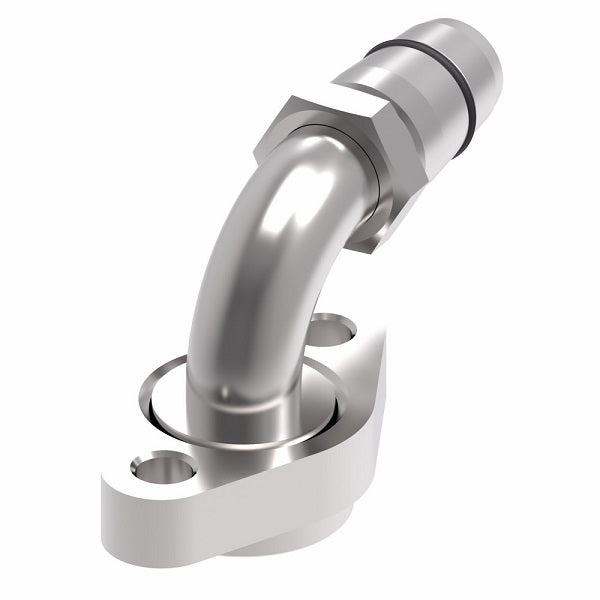

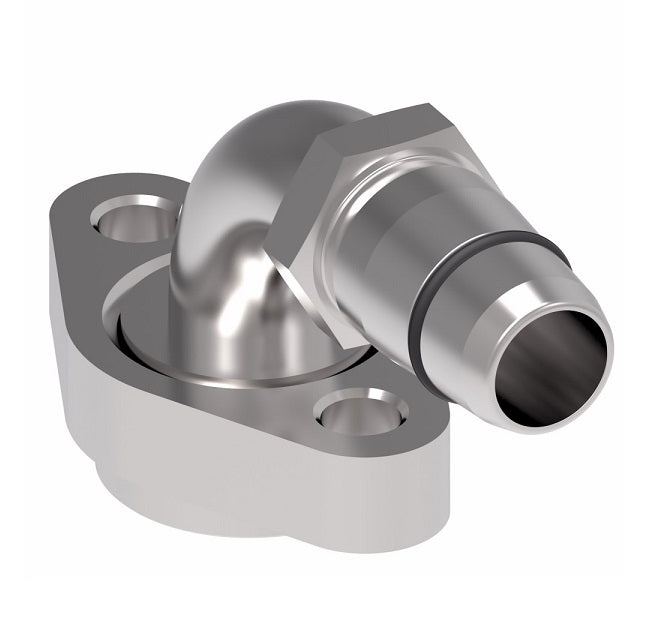

FC800 EverCool Series - BOCK Tube Field Attachable Fitting - 90° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.
Buy More, Save More!
Quantity Price Each
10–39 $74.75
40–79 $67.59
80+ $59.64
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Material(s):
  • Steel
Compatible Series:
  • FC800 Series
Notes:
  • The Nipple and the Socket must be ordered separately.
Part Number
Hose Nipple 		Part Number
Socket 		Hose Size Tube Size Thread Size A Hose cut-off
Factor 		Drop dia. Hole dia. Nipple Hex.(metric) Socket Hex.(metric)
GA25128-16 G1212-16K -16 -16 - 3.21" 2.05" 2.18" 0.69" 24mm 36mm
GA25128-20 G1212-20K -20 -20 - - - - - - -
