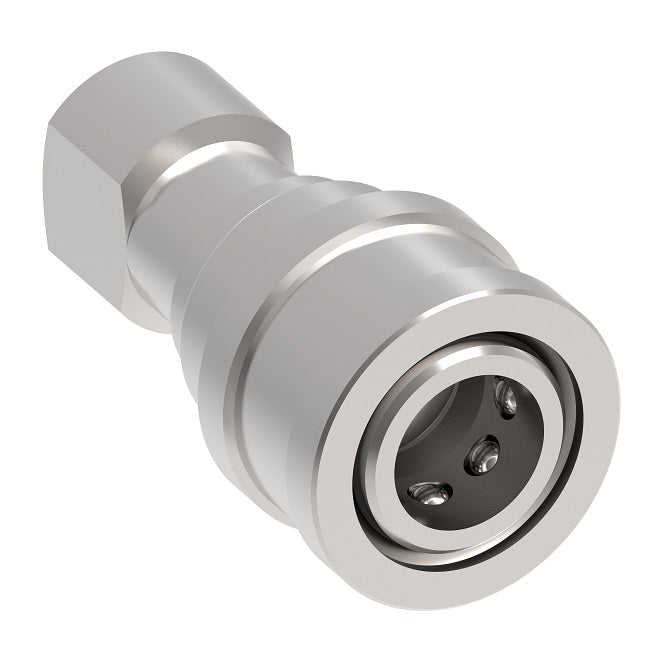

G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel
G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel
G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel

G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel

Sale price$103.74

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female BSP (Valved)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves.

Note: Incorporates a pusher device to open mating valved coupling halves.
Buy More, Save More!
Quantity Price Each
5–19 $97.52
20–59 $88.18
60+ $77.81
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 5600 Series
Shape:

Straight
Product Features:
  • Self-sealing poppet valve provides excellent high and low pressure sealing.
  • Streamlined valving provides minimum pressure drop.
Applications & Markets:
  • Hydraulic fluid transfer
  • Agricultural equipment
  • Construction equipment
  • Dump, snow plow and maintenance vehicles
  • In-plant manufacturing
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size)
  • Standard seal materials: Buna-N, EPDM and FKM
Body Size Max. Operating Pressure Minimum Burst Pressure Connected Vacuum Connected Only Rated Flow Air Inclusion Fluid Loss
in bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4 350 5000 1050 15000 28 4 1 0.50 0.50
3/8 280 4000 840 12000 28 23 6 1.5 1.3
5/8 280 4000 840 12000 28 45 12 2.8 2.8
3/4 280 4000 840 12000 28 106 28 10.0 8.2
1 280 4000 840 12000 28 189 50 14.2 14.2
Plug/Male (Figure 1)
Socket/Female (Figure 2)
Dimensions (Female BSP, Valved)
Part Number Coupling
Type		 Body
Size		 Thread Figure Dimensions
Buna-N A B Hex 1
mm in mm in mm in
G5622-4-4 Socket/Female 1/4" G 1/4" 2 1.89" 48mm 1.04" 26.3mm 0.87" 22.0mm
G5623-4-4 Plug/Male 1/4" G 1/4" 1 1.34" 34mm - - 0.75" 19.0mm
G5622-6-6 Socket/Female 3/8" G 3/8" 2 2.20" 56mm 1.18" 30mm 1.03" 27.0mm
G5623-6-6 Plug/Male 3/8" G 3/8" 1 1.50" 38mm - - 0.91" 23.0mm
G5622-8-10 Socket/Female 5/8" G 1/2" 2 2.60" 66mm 1.51" 38.3mm 1.06" 27.0mm
G5623-8-10 Plug/Male 5/8" G 1/2" 1 1.73" 44mm - - 1.06" 27.0mm
G5622-12-12 Socket/Female 3/4" G 3/4" 2 3.25" 82.5mm 1.89" 48mm 1.57" 40.0mm
G5623-12-12 Plug/Male 3/4" G 3/4" 1 2.17" 55mm - - 1.38" 35.0mm
G5622-16-16 Socket/Female 1" G 1" 2 3.86" 98mm 2.09" 53mm 1.97" 50.0mm
G5623-16-16 Plug/Male 1" G 1" 1 2.52" 64mm - - 1.61" 41.0mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
