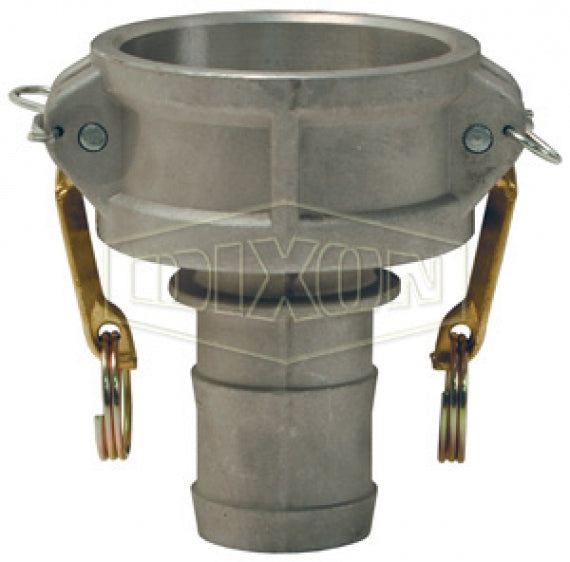

G4030-C-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Coupler | Type C | 4" Coupler x 3" Hose Shank | A380 Permanent Mold Aluminum

G4030-C-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Coupler | Type C | 4" Coupler x 3" Hose Shank | A380 Permanent Mold Aluminum

Sale price$86.32

Dixon Valve
Global Cam & Groove | Type A | Reducer (Jump Size) Coupler | Coupler x Hose Shank

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–19 $81.14
20–59 $73.37
60+ $64.74
Discounts applied in cart/checkout.

Product Data:

MAWP:

100

Shape:

Straight

Ends Configuration:
  • 4in Female Cam & Groove
  • 3in Hose Barb
Construction:
  • Made to Dixon specifications and branded Dixon.
  • Nitrile Rubber seals.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 Coupler x Hose shank Size Max. Operating Pressure
G3020-C-AL 3" x 2" 125 PSI
G4030-C-AL 4" x 3" 100 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
