FXFE6.CONV.16S Versilon™ ConvoFlex by Saint Gobain | Convoluted Flexible FEP Tubing | 7/8" ID x 1" OD x .025" Wall | | 50' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Fluoropolymer Flexible Tubing

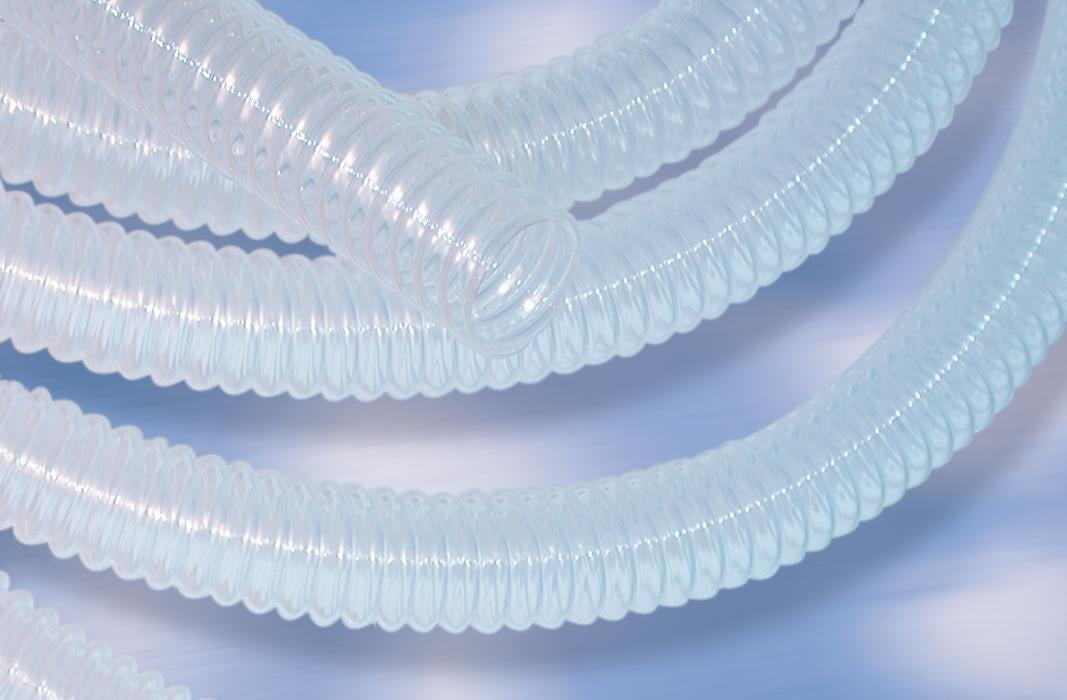

Versilon® ConvoFlex™ | Convoluted Flexible FEP Tubing
Versilon® ConvoFlex (Convoluted Flexible) tubing is specifically designed to be used with the Versilon line of Flare Grip® molded FEP flare fittings. There’s no need for expensive straight cuffs — ConvoFlex is easily cold flared with our FastFLARE™ cold forming tools.
1
What is this product used for?
- Biotech
- Pharmaceutical
- Aerospace
- Semiconductor
- Chemical processing
2
What are the key specifications?
Tube
FEP
Cover
FEP
Reinforcement
None
Colors
Transparent
Maximum Recommended Service Temp °F (°C)
N/A
Minimum Recommended Operating Temp. °F (°C)
N/A
Specifications
N/A.
WARNING:
Not intended as an implant material!
3
What are the main product features?
- Flexible convoluted construction.
- Read-through transparency.
- Virtually unlimited length capability.
- Continuous flow path — self-flushing.
- Excellent as chemically resistant wire conduit.
- Easily cold flared for use with Flare Grip® tube fittings.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Burst Pressure (PSI)* |
Cv** |
|---|---|---|---|---|---|---|
| FXFE6.CONV.06S | 1/4" | 3/8" | .020" | 1/2" | 100 PSI | 0.31 |
| FXFE6.CONV.08S | 3/8" | 1/2" | .023" | 3/4" | 70 PSI | 0.83 |
| FXFE6.CONV.10S | 1/2" | 5/8" | .025" | 1" | 60 PSI | 1.64 |
| FXFE6.CONV.12S | 5/8" | 3/4" | .025" | 1-1/2" | 50 PSI | 2.78 |
| FXFE6.CONV.14S | 3/4" | 7/8" | .025" | 2" | 40 PSI | 4.56 |
| FXFE6.CONV.16S | 7/8" | 1" | .025" | 2-1/2" | 38 PSI | 8.20 |
** Based on a long radius sweep.
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon™ ConvoFlex™ Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
