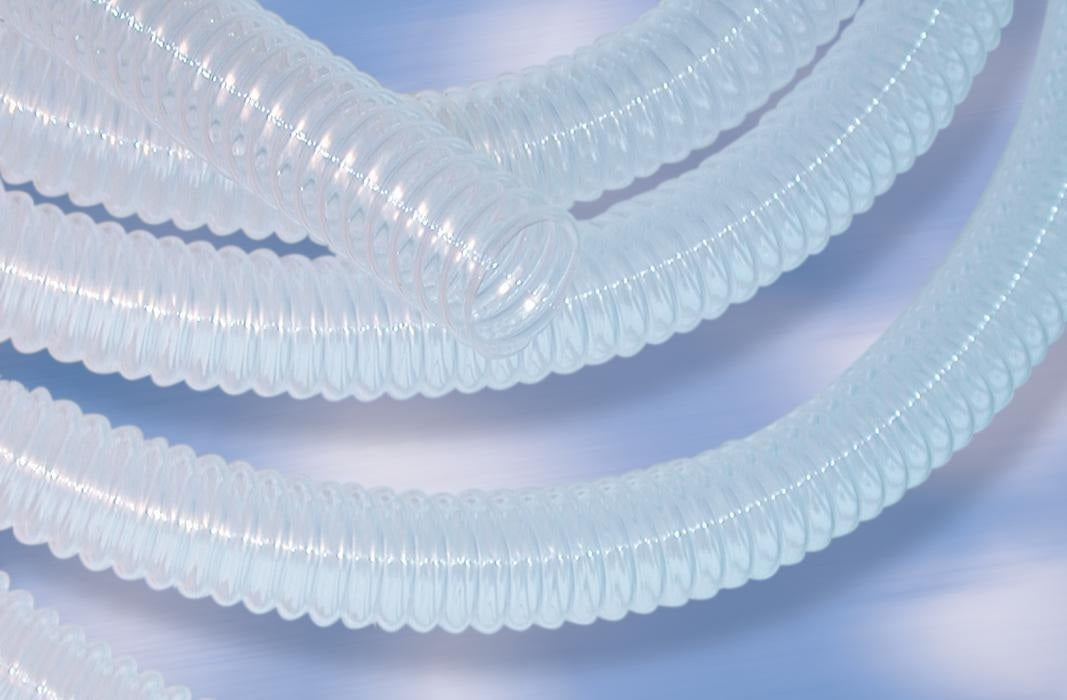

FXFE6.CONV.06S Versilon™ ConvoFlex by Saint Gobain | Convoluted Flexible FEP Tubing | 1/4" ID x 3/8" OD x .020" Wall | 100' Package Length
Minimum Order Quantity: 2 Units
Saint Gobain
Versilon® ConvoFlex™ | Convoluted Flexible FEP Tubing
Offers read-through transparency, and features a spiral design that aids in self-flushing and cleaning.
Used in the biotech, pharmaceutical, aerospace, semiconductor and chemical processing industries.
Package Quantity: 100 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,128.00 |
| 8–14 | $1,080.00 |
| 15+ | $960.00 |
Versilon® ConvoFlex™ | Convoluted Flexible FEP Tubing
Versilon® ConvoFlex (Convoluted Flexible) tubing is specifically designed to be used with the Versilon line of Flare Grip® molded FEP flare fittings. There’s no need for expensive straight cuffs — ConvoFlex is easily cold flared with our FastFLARE™ cold forming tools.
1
What is this product used for?
- Biotech
- Pharmaceutical
- Aerospace
- Semiconductor
- Chemical processing
2
What are the key specifications?
FEP
FEP
None
Transparent
N/A
N/A
N/A.
Not intended as an implant material!
3
What are the main product features?
- Flexible convoluted construction.
- Read-through transparency.
- Virtually unlimited length capability.
- Continuous flow path — self-flushing.
- Excellent as chemically resistant wire conduit.
- Easily cold flared for use with Flare Grip® tube fittings.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Burst Pressure (PSI)* |
Cv** |
|---|---|---|---|---|---|---|
| FXFE6.CONV.06S | 1/4" | 3/8" | .020" | 1/2" | 100 PSI | 0.31 |
| FXFE6.CONV.08S | 3/8" | 1/2" | .023" | 3/4" | 70 PSI | 0.83 |
| FXFE6.CONV.10S | 1/2" | 5/8" | .025" | 1" | 60 PSI | 1.64 |
| FXFE6.CONV.12S | 5/8" | 3/4" | .025" | 1-1/2" | 50 PSI | 2.78 |
| FXFE6.CONV.14S | 3/4" | 7/8" | .025" | 2" | 40 PSI | 4.56 |
| FXFE6.CONV.16S | 7/8" | 1" | .025" | 2-1/2" | 38 PSI | 8.20 |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon™ ConvoFlex™ Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
