FW-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female Weld Fitting | Carbon Steel
Kurt Hydraulics
FW - Female Weld Fitting Rigid
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.88 |
| 40–79 | $12.55 |
| 80+ | $11.08 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

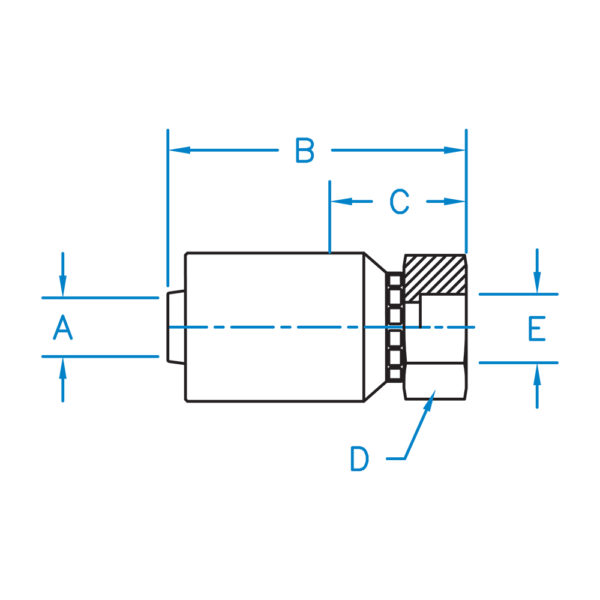

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| FW-04-04-K2 | 1/4" | 1.60" | 0.54" | 5/8" | 0.25" | N/A |
| FW-04-05-K2 | 1/4" | 1.60" | 0.54" | 5/8" | 0.31" | N/A |
| FW-04-06-K2 | 1/4" | 1.60" | 0.54" | 5/8" | 0.37" | N/A |
| FW-06-06-K2 | 3/8" | 1.93" | 0.56" | 11/16" | 0.38" | N/A |
| FW-06-08-K2 | 3/8" | 1.93" | 0.56" | 3/4" | 0.50" | N/A |
| FW-08-08-K2 | 1/2" | 1.95" | 0.61" | 7/8" | 0.50" | N/A |
| FW-08-10-K2 | 1/2" | 1.95" | 0.61" | 7/8" | 0.62" | N/A |
