FSX45-10-12 by Kurt Hydraulics | Jump Size | Female SAE 45° | 45° Elbow | Swivel | for 5/8" Hose ID

FSX45-10-12 by Kurt Hydraulics | Jump Size | Female SAE 45° | 45° Elbow | Swivel | for 5/8" Hose ID

Sale price$32.25

by Kurt Hydraulics
FSX45 - 45 deg. SAE Female 45 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $30.32
40–79 $27.41
80+ $24.19
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

45 Degree

Ends Configuration:
  • 5/8in Hose Barb
  • 3/4in Female SAE 45 Flare

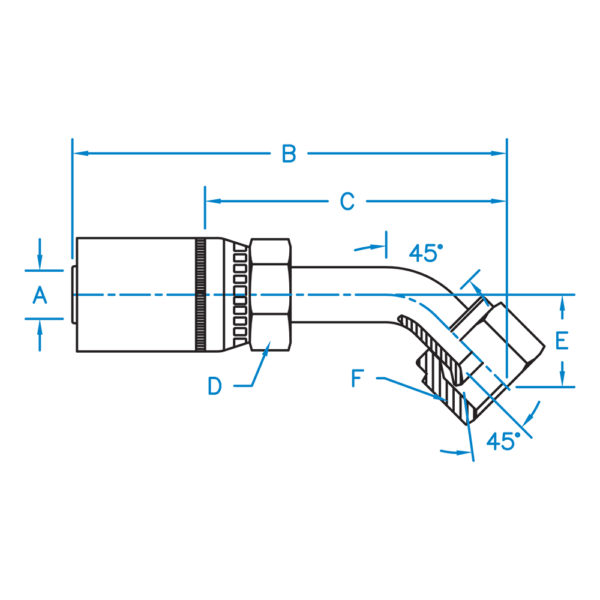

Part Number A B C D E F Hose ID
(In)		 Thread
FSX45-04-04 0.250 3.135 1.880 5/8 0.394 9/16 1/4" 7/16-20
FSX45-04-05 0.250 3.165 1.91 5/8 0394 5/8 1/4" 1/2-20
FSX45-06-05 0.375 3.426 1.926 11/16 .394 5/8 3/8" 1/2-20
FSX45-06-06 0.375 2.835 1.970 11/16 0.430 3/4 3/8" 5/8-18
FSX45-08-08 0.500 3.910 2.410 7/8 0.590 15/16 1/2" 3/4-16
FSX45-08-10 0.500 3.560 2.060 7/8 0.630 1-1/16 1/2" 7/8-14
FSX45-10-12 0.625 N/A N/A 1-1/8 N/A 1-1/4 5/8" 1-1/16-14
FSX45-12-12 0.750 4.329 2.449 1-1/8 1.120 1-1/4 3/4" 1-1/16-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
