FSX45-04-05-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 5/16" SAE 45° Flare Swivel | 45° Elbow | Carbon Steel
Kurt Hydraulics
FSX45 - 45° SAE Female 45° Bent Tube Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $50.67 |
| 40–79 | $45.82 |
| 80+ | $40.43 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:

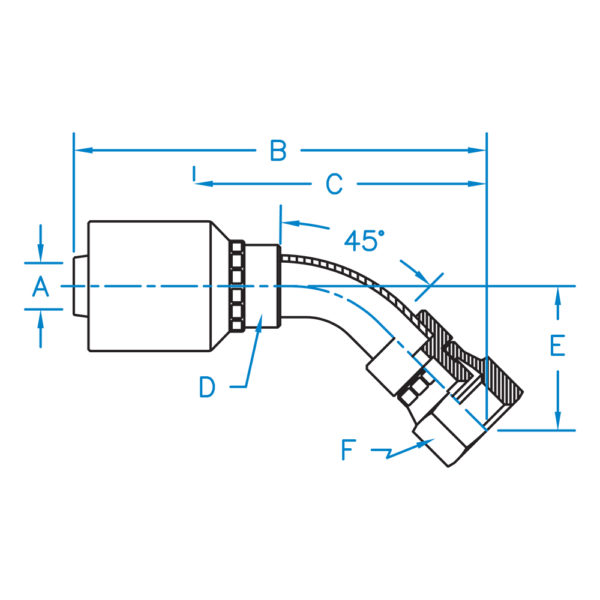

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FSX45-04-04-K2 | 1/4" | 2.86" | 1.80" | 5/8" | 0.39" | 9/16" | 7/16 – 20 |
| FSX45-04-05-K2 | 1/4" | 2.89" | 1.83" | 5/8" | 0.39" | 5/8" | 1/2 – 20 |
| FSX45-06-05-K2 | 3/8" | 3.22" | 1.85" | 11/16" | 0.39" | 5/8" | 1/2 – 20 |
| FSX45-06-06-K2 | 3/8" | 3.26" | 1.89" | 11/16" | 0.43" | 3/4" | 5/8 – 18 |
| FSX45-08-08-K2 | 1/2" | 3.65" | 2.31" | 7/8" | 0.59" | 15/16" | 3/4 – 16 |
| FSX45-08-10-K2 | 1/2" | 3.30" | 1.96" | 7/8" | 0.63" | 1-1/16" | 7/8 – 14 |
