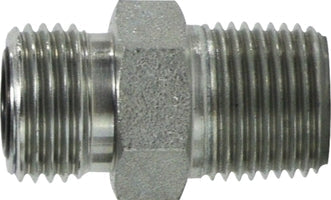

FSO240444 by Midland | Hydraulic O-Ring Face Seal | 9/16-18 Male O-Ring Face Seal x 1/4-18 Male Pipe | Adapter | Steel
Midland Industries
Hydraulic Adapters: Male O-Ring Face Seal Adapter - Steel
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | ||
|---|---|---|
| FF2404 | 4205 | FLO |
 |
||
|---|---|---|
| Part Number | Male Face Seal Thread (1) |
Male Pipe Thread (2) |
| FSO240444 (FSO2404-4-4) |
9/16-18 | 1/4-18 |
| FSO240446 |
9/16-18 | 3/8 |
| FSO240464 (FSO2404-6-4) |
11/16-16 | 1/4-18 |
| FSO240466 (FSO2404-6-6) |
11/16-16 | 3/8-18 |
| FSO240484 (FSO2404-8-4) |
13/16-16 | 1/4-18 |
| FSO240486 |
13/16-16 | 3/8" |
| FSO240488 (FSO2404-8-8) |
13/16-16 | 1/2-14 |
| FSO2404108 (FSO2404-10-8) |
1-14 | 1/2 |
| FSO24041212 (FSO2404-12-12) |
1-3/16-12 | 3/4-14 |
| FSO24041616 (FSO2404-16-16) |
1-7/16-12 | 1-11-1/2 |
| FSO24042020 |
1-11/16-12 | 1-1/4" |
| FSO24042424 |
2-12 | 1-1/2" |
