FSMAN30-24 by Flexco | #04064 | Clipper Manual Roller Lacer Face Strip | 24" Belt Width | Hook Size: 30

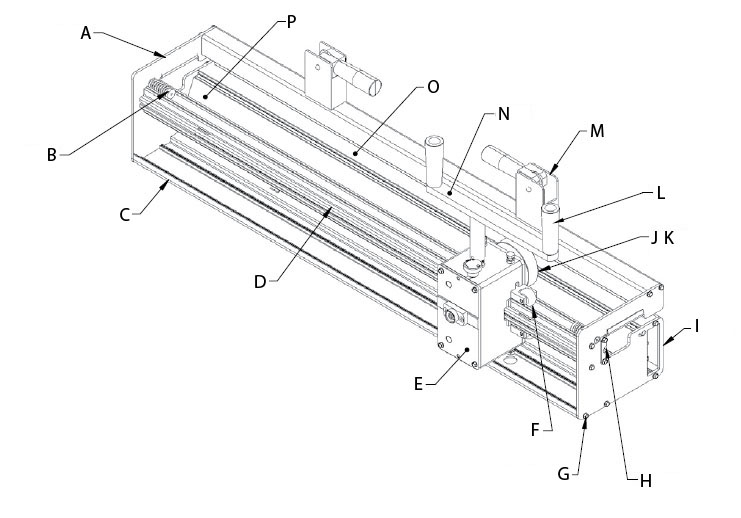

The portable, easy-to-use Clipper® Roller Lacer® makes it easy to lace belts up to 60" (1500 mm) wide in a single operation. Belts wider than the lacer's width can be laced in multiple passes with the continuous lacing feature. A handle-actuated belt clamp holds belts securely while twin rollers embed fasteners evenly to create a strong, longlasting splice.

A durable, lightweight body made from sturdy aircraft aluminum and a carrying handle make it easy to take the Roller Lacer on-site to lace belts right on the conveyor. Plus, there is room for extra lacer pins and face strips in a handy storage compartment.

Each Box Contains:
Manual Roller Lacer Face Strip One Lacer Pin
Applications:
Parcel services General material handling Corrugated box board Food processing Distribution centers Ag/Combine pick-up belts

Part Number	Belt Width	Hook Size
FSMAN30-24	24"	30
FSMAN30-36	36"	30
FSMAN30-48	48"	30
FSMAN30-60	60"	30
FSMAN36-24	24"	36, UCM36
FSMAN36-36	36"	36, UCM36
FSMAN36-48	48"	36, UCM36
FSMAN36-60	60"	36, UCM36
FSMAN1-24	24"	1, UX-1
FSMAN1-36	36"	1, UX-1
FSMAN1-48	48"	1, UX-1
FSMAN1-60	60"	1, UX-1
FSMAN2-24	24"	2-4, U2SP-U3
FSMAN2-36	36"	2-4, U2SP-U3
FSMAN2-48	48"	2-4, U2SP-U3
FSMAN2-60	60"	2-4, U2SP-U3
FSMAN4-1/2-24	24"	4-1/2-7, U4-U7
FSMAN4-1/2-36	36"	4-1/2-7, U4-U7
FSMAN4-1/2-48	48"	4-1/2-7, U4-U7
FSMAN4-1/2-60	60"	4-1/2-7, U4-U7
