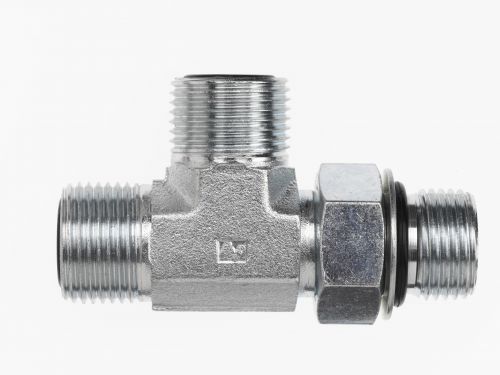

FS6804-16-16-16-NWO-FG by Brennan Inc. | -16 Male Face Seal x -16 Male Face Seal x -16 Male Adjustable O-Ring Boss | Tee | Forged Steel
Brennan Inc.
O-Ring Face Seal Fittings: FS6804-NWO - Male Face Seal x Male Face Seal x Male Adjustable O-Ring Boss Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $35.01 |
| 40–79 | $31.65 |
| 80+ | $27.93 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | TubeO.D | A1Thread | BThread | A2Thread | A1Drill | BDrill | A2Drill | M1Length | NLength | M2Length | CHex | JJFlats |
| FS6804-04-04-04-NWO-FG | Forged Steel | 1/4" | 9/16-18" | 7/16-20" | 9/16-18" | 0.172" | 0.172" | 0.172" | 0.850" | 1.290" | 0.850" | 0.625" | 0.562" |
| FS6804-04-06-04-NWO-FG | Forged Steel | 1/4" | 9/16-18" | 9/16-18" | 9/16-18" | 0.172" | 0.264" | 0.172" | 0.920" | 1.450" | 0.920" | 0.750" | 0.750" |
| FS6804-04-08-04-NWO-FG | Forged Steel | 1/4" | 9/16-18" | 3/4-16" | 9/16-18" | 0.172" | 0.378" | 0.172" | 0.980" | 1.600" | 0.980" | 0.750" | 0.938" |
| FS6804-06-04-06-NWO-FG | Forged Steel | 3/8" | 11/16-16" | 7/16-20" | 11/16-16" | 0.172" | 0.172" | 0.264" | 0.980" | 1.370" | 0.980" | 0.625" | 0.750" |
| FS6804-06-06-06-NWO-FG | Forged Steel | 3/8" | 11/16-16" | 9/16-18" | 11/16-16" | 0.264" | 0.264" | 0.264" | 0.980" | 1.450" | 0.980" | 0.750" | 0.750" |
| FS6804-06-08-06-NWO-FG | Forged Steel | 3/8" | 11/16-16" | 3/4-16" | 11/16-16" | 0.264" | 0.378" | 0.264" | 1.040" | 1.600" | 1.040" | 0.938" | 0.750" |
| FS6804-08-06-08-NWO-FG | Forged Steel | 1/2" | 13/16-16" | 9/16-18" | 13/16-16" | 0.378" | 0.264" | 0.378" | 1.100" | 1.440" | 1.100" | 0.750" | 0.750" |
| FS6804-08-08-08-NWO-FG | Forged Steel | 1/2" | 13/16-16" | 3/4-16" | 13/16-16" | 0.378" | 0.378" | 0.378" | 1.100" | 1.600" | 1.100" | 0.938" | 0.750" |
| FS6804-08-10-08-NWO-FG | Forged Steel | 1/2" | 13/16-16" | 7/8-14" | 13/16-16" | 0.378" | 0.484" | 0.378" | 1.210" | 1.970" | 1.210" | 1.062" | 1.062" |
| FS6804-08-12-08-NWO-FG | Forged Steel | 1/2" | 13/16-16" | 1-1/16-12" | 13/16-16" | 0.378" | 0.609" | 0.378" | 1.320" | 2.170" | 1.320" | 1.375" | 1.188" |
| FS6804-10-10-06-NWO-FG | Forged Steel | 5/8" | 1-14" | 7/8-14" | 11/16-16" | 0.484" | 0.484" | 0.264" | 1.310" | 1.970" | 1.150" | 1.062" | 1.062" |
| FS6804-10-10-10-NWO-FG | Forged Steel | 5/8" | 1-14" | 7/8-14" | 1-14" | 0.484" | 0.484" | 0.484" | 1.310" | 1.970" | 1.310" | 1.062" | 1.062" |
| FS6804-10-12-10-NWO-FG | Forged Steel | 5/8" | 1-14" | 1-1/16-12" | 1-14" | 0.484" | 0.484" | 0.484" | 1.410" | 2.170" | 1.410" | 1.375" | 1.188" |
| FS6804-10-12-12-NWO-FG | Forged Steel | - | - | - | - | - | - | - | - | - | - | - | - |
| FS6804-12-12-08-NWO-FG | Forged Steel | 3/4" | 1-3/16-12" | 1-1/16-12" | 1-3/16-12" | 0.609" | 0.609" | 0.378" | 1.470" | 2.170" | 1.320" | 1.375" | 1.188" |
| FS6804-12-12-12-NWO-FG | Forged Steel | 3/4" | 1-3/16-12" | 1-1/16-12" | 1-3/16-12" | 0.609" | 0.609" | 0.609" | 1.470" | 2.170" | 1.470" | 1.375" | 1.188" |
| FS6804-12-16-12-NWO-FG | Forged Steel | 3/4" | 1-3/16-12" | 1-5/16-12" | 1-3/16-12" | 0.609" | 0.811" | 0.609" | 1.62" | 2.35" | 1.62" | 1.625" | 1.438" |
| FS6804-16-16-16-NWO-FG | Forged Steel | 1" | 1-7/16-12" | 1-5/16-12" | 1-7/16-12" | 0.811" | 0.811" | 0.811" | 1.640" | 2.350" | 1.640" | 1.625" | 1.438" |
| FS6804-20-16-20-NWO-FG | Forged Steel | - | - | - | - | - | - | - | - | - | - | - | - |
| FS6804-20-20-20-NWO-FG | Forged Steel | 1-1/4" | 1-11/16-12" | 1-5/8-12" | 1-11/16-12" | 1.024" | 1.024" | 1.024" | 1.760" | 2.450" | 1.760" | 1.875" | 1.625" |
| FS6804-24-24-24-NWO-FG | Forged Steel | 1-1/2" | 2-12" | 1-7/8-12" | 2-12" | 1.260" | 1.260" | 1.260" | 1.920" | 2.590" | 1.920" | 2.125" | 1.875" |
| FS6804-06-06-06-NWO-SS | Stainless Steel | 3/8" | 11/16-16" | 9/16-18" | 11/16-16" | 0.264" | 0.264" | 0.264" | 0.980" | 1.450" | 0.980" | 0.750" | 0.750" |
