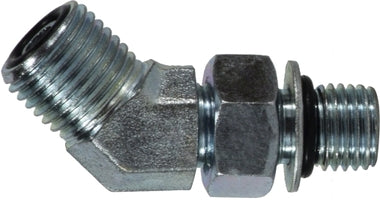

FS680288 by Midland | Hydraulic ORFS to ORB | 13/16-16 Male O-Ring Face Seal x 3/4-16 Male O-Ring Boss | 45° Elbow | Steel
Midland Industries
Hydraulic Adapters: ORFS to ORB 45° Elbow - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $19.36 |
| 40–79 | $17.51 |
| 80+ | $15.45 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | ||
|---|---|---|
| FF6802 | 4365 | V5OLO |
 |
||||
|---|---|---|---|---|
| Part Number | Male O-Ring Face Seal (1) |
Male O-Ring Face Seal Thread (1) |
Male O-Ring Boss (2) |
Male O-Ring Boss Thread (2) |
| FS680244 (FS68024-4-4) |
1/4" | 9/16-18 | 1/4" | 7/16-20 |
| FS680264 | 3/8" | 11/16-16 | 1/4" | 7/16-12 |
| FS680266 (FS68026-6-6) |
3/8" | 11/16-16 | 3/8" | 9/16-18 |
| FS680268 | 3/8" | 11/16-16 | 1/2" | 3/4-16 |
| FS6802610 | 3/8" | 11/16-16 | 5/8" | 7/8-14 |
| FS680286 | 1/2" | 13/16-16 | 3/8" | 9/16-18 |
| FS680288 (FS68028-8-8) |
1/2" | 13/16-16 | 1/2" | 3/4-16 |
| FS68021010 (FS680210-10-10) |
5/8" | 1-14 | 5/8" | 7/8-14 |
| FS68021212 (FS680212-12-12) |
3/4" | 1-3/16-12 | 3/4" | 1-1/16-12 |
| FS68021616 (FS680216-16-16) |
1" | 1-7/16-12 | 1" | 1-5/16-12 |
