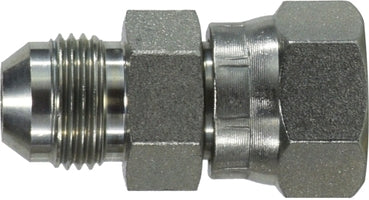

FS650466 by Midland | Hydraulic JIC to Flat Face Swivel | 9/16-18 Male JIC 37° Flare x 11/16-16 Female O-Ring Face Seal | Steel

FS650466 by Midland | Hydraulic JIC to Flat Face Swivel | 9/16-18 Male JIC 37° Flare x 11/16-16 Female O-Ring Face Seal | Steel

Sale price$10.00

Midland Industries
Hydraulic Adapters: JIC to Flat Face Swivel - Steel
Buy More, Save More!
Quantity Price Each
10–39 $9.40
40–79 $8.50
80+ $7.50
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Male JIC
  • 3/8in Female O-Ring Face Seal
Material(s):
  • Steel
Technical Info:
Crossover Series:
FF6504 FF1296
Part Number Male JIC 37° Flare Thread
(1)		 Female O-Ring Face Seal Thread
(2)
FS650444
(FS6504-44) 		7/16-20 9/16-18
FS650466
(FS6504-66) 		9/16-18 11/16-16
FS650488
(FS6504-88) 		3/4-16 13/16-16
FS65041010
(FS6504-10-10) 		7/8-14 1-14
FS65041616
(FS6504-16-16) 		1-5/16-12 1-7/16-12
